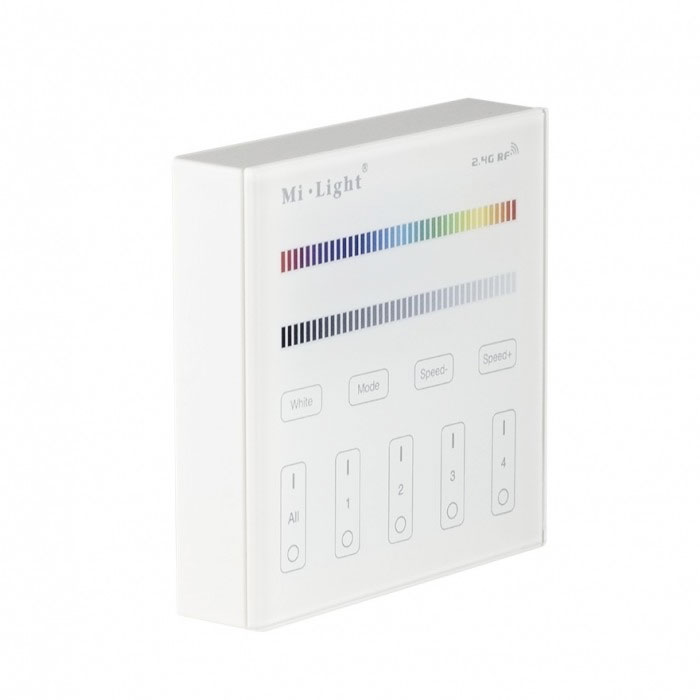

4-Zone RGB /RGBW Smart Touch Panel Remote Controller - Mi-Light B3 Series

Price:   $29.95

  • Model: RGB-B3
  • Shipping Weight: 0.15kg
  • 965 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    RGB LED Strip Lights - 24V LED Tape Light w/ LC4 Connector - 180 Lumens/ft.
    $129.95  $96.95-25%
    RGB LED Strip Lights - 12V LED Tape Light w/ LC4 Connector - 122 Lumens/ft.
    $69.95  $46.95-33%
    LED Light Strips - 12V LED Tape Light with 18 SMDs/ft., 1 Chip SMD LED 3528 with LC2 Connector
    $49.95  $32.95-34%
    Outdoor LED Light Strips - Weatherproof 12V LED Tape Light with 18 SMDs/ft., 1 Chip SMD LED 3528
    $69.95  $49.95-29%
    • Details
    • Reviews
    • Tags
    • FAQ

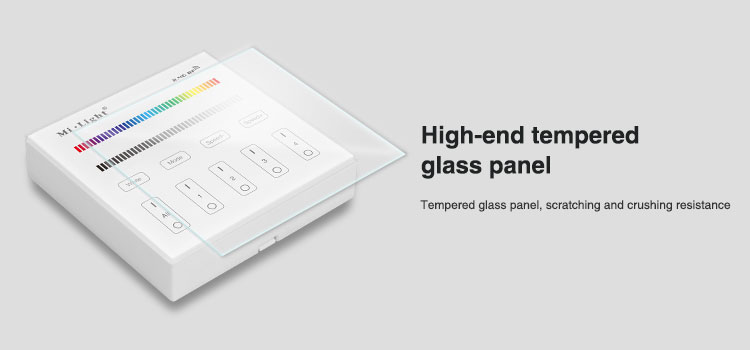

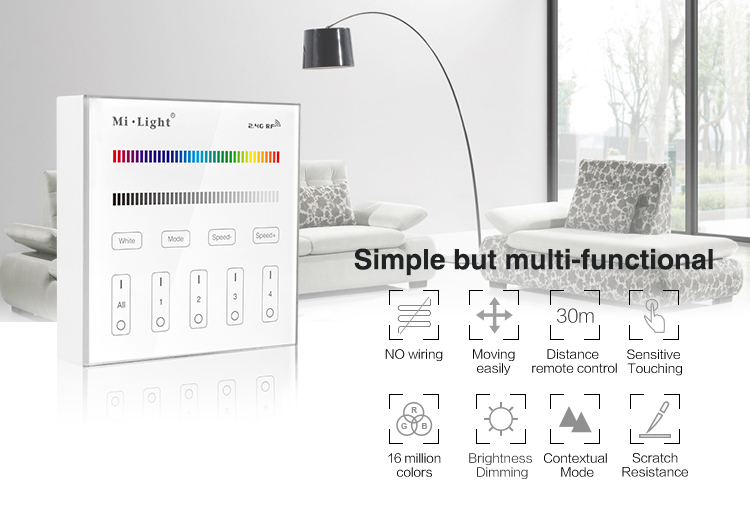

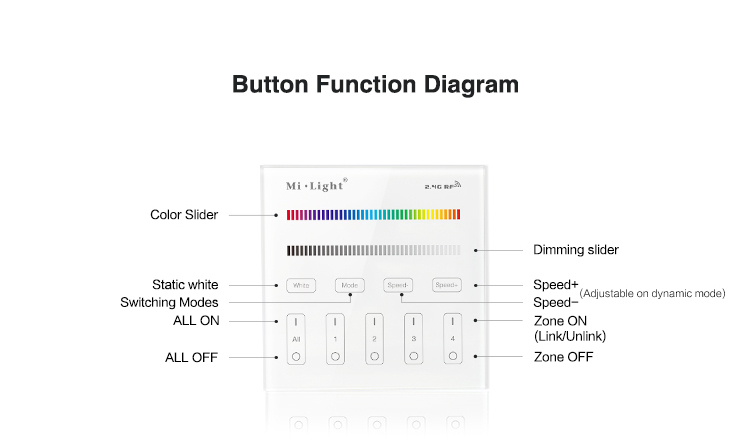

    Wall-mounted 4-zone radio controller for RGB/RGBW lighting. Mi-Light is a wireless wall panel for managing brightness with the ability to control a given RGB colour for multi-colour devices. The controller allows individual access for each zone, which can be controlled by a glass wall panel. The device is designed for wall mounting.

    Mi-Light 4-zone RGB/RGBW smart panel B3 specification



    Application For multi-colour installations with extra white RGB+W
    Maximum output current Dependent on the receiver used

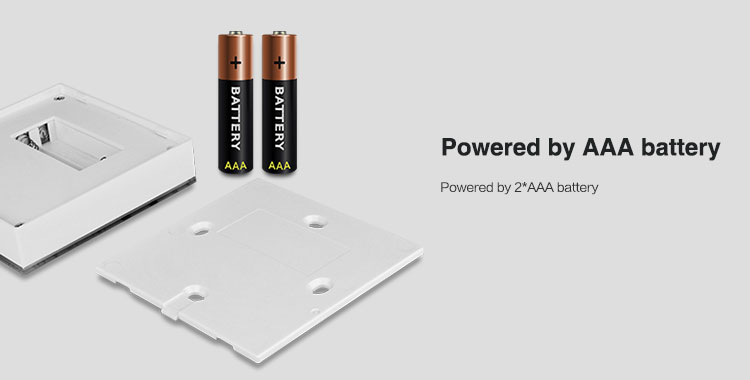

    Powered by 2x1,5V AAA batteries (not included)

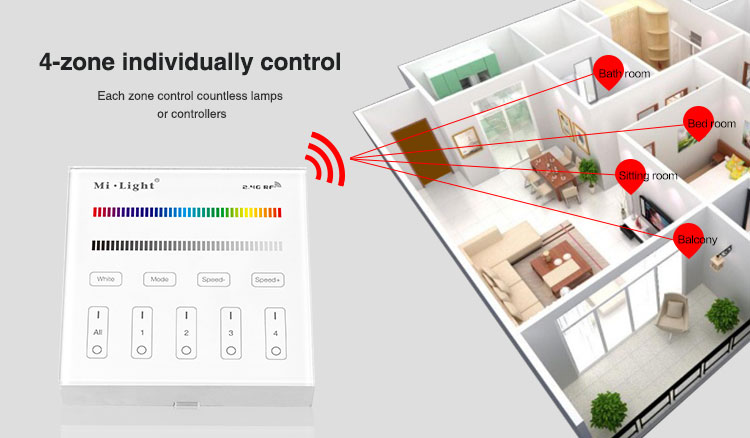

    The number of zones supported 1 to 4
    Modulation method GFSK
    Controlling method Radio

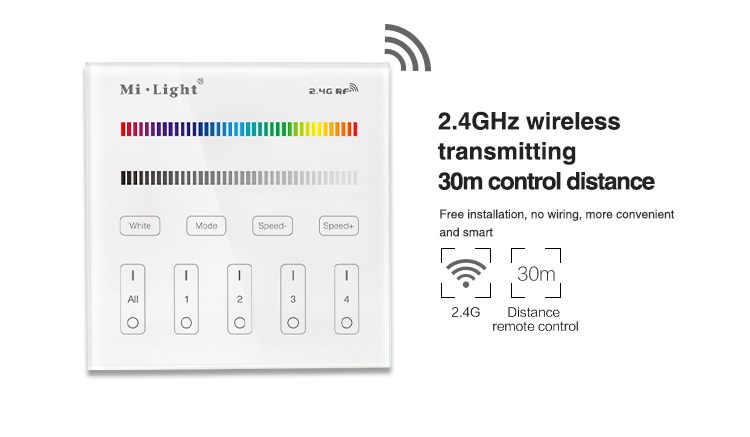

    Controlling range up to 30 meters in open area
    Control frequency 2,4GHz
    Power consumption in operating mode 5,5dBm
    Power consumption in standby mode 10uA
    Working temperature -20 – 60℃

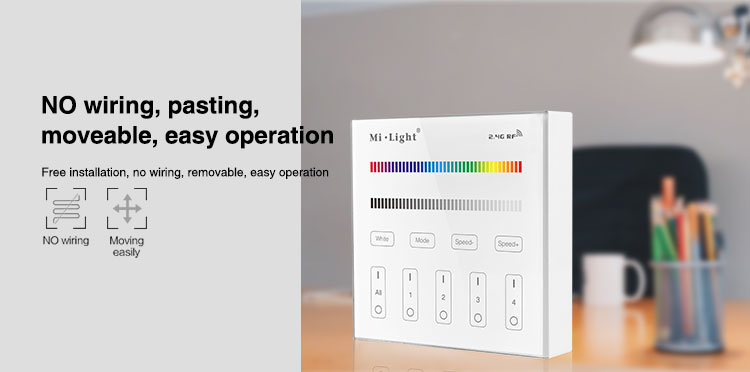

    Type of installation Surface
    Colour White
    IP rating IP20

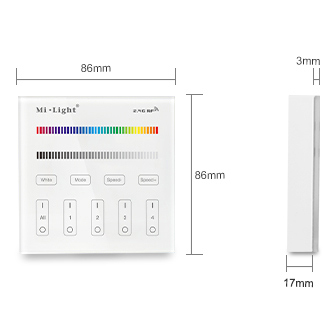

    Dimensions[mm] L86 x W86 x H21
    Certification RoHS, CE
    Warranty 2 years

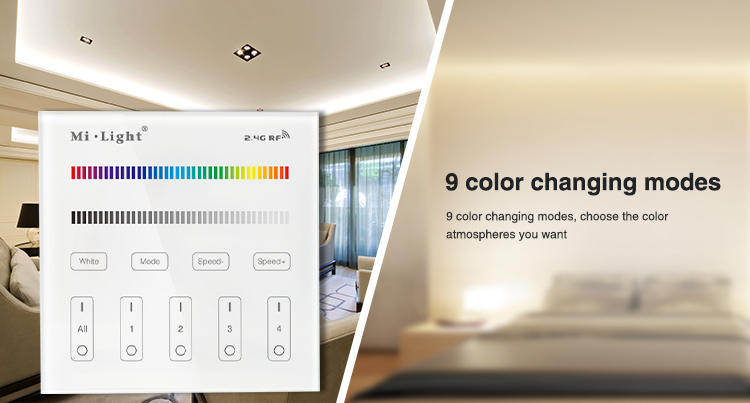

    Table 1. Dynamic programs B3



    Number Function Change speed Change brightness
     1 Smooth transition between all colours  Possible  Possible
     2 Single colour flashing  Possible  Possible
     3 Pulses between 3 basic colours and white  Possible  Possible
     4 Jumps between 6 colours and white  Possible  Possible
     5 Jumps between random colour sequences  Possible  Possible
     6 Red pulses complete with 3 flashes  Possible  Possible
     7 Blue pulse with 3 flashes  Possible  Possible
     8 Green pulse with 3 flashes  Possible  Possible
     9 Several sequences combined in 1 dynamic program  Possible  Possible

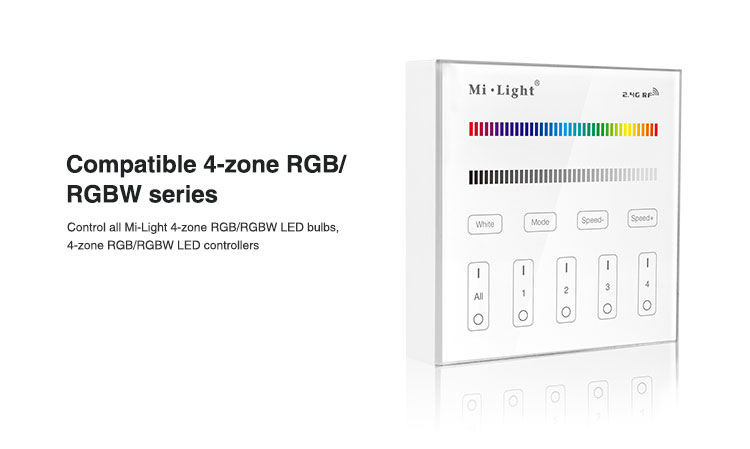

    Table 2. Compatible devices with B3



    Product code Product name
    FUT037  Mi-Light 2.4GHz 4-zone RGB LED strip controller FUT037
    FUT038  Mi-Light 2.4GHz 4-zone RGBW LED strip controller FUT038
    FUT080  Mi-Light wine glass LED table lamp FUT080
    FUT080A  Mi-Light ring glass LED table lamp FUT080A
    FUT067  Mi-Light 12W RGBW LED downlight FUT067
    FUTT01  Mi-Light 35W RGBW LED floodlight FUTT01
    FUT062  Mi-Light 9W RGB+CCT LED ceiling spotlight FUT062
    FUT066  Mi-Light 12W RGB+CCT LED downlight FUT066
    FUT010  Mi-Light 4W GU10 RGBW LED spotlight FUT010
    FUT012  Mi-Light 9W RGB+CCT LED light bulb FUT012
    FUT013  Mi-Light 5W E14 RGBW LED light bulb FUT013
    FUT014  Mi-Light 6W RGBW LED light bulb FUT014
    FUT016  Mi-Light 9W RGBW LED light bulb FUT016
    FUT018  Mi-Light 5W GU10 RGBW LED spotlight FUT018
    FUT102  Mi-Light 9W JDR LED light bulb FUT102
    FUT103  Mi-Light 4W GU10 RGB+CCT LED spotlight FUT103
    FUT104  Mi-Light 4W MR16 RGB+CCT LED spotlight FUT104
    FUT105  Mi-Light 12W RGB+CCT LED light bulb FUT105
    FUTC01  Mi-Light 9W RGB+CCT LED garden light FUTC01
    IBOX1  Mi-Light WiFi iBox smart light iBox1

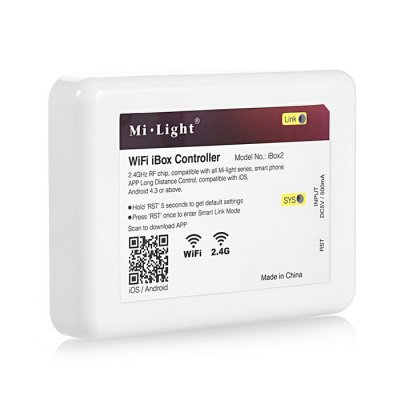

    IBOX2  Mi-Light WiFi controller iBox2
