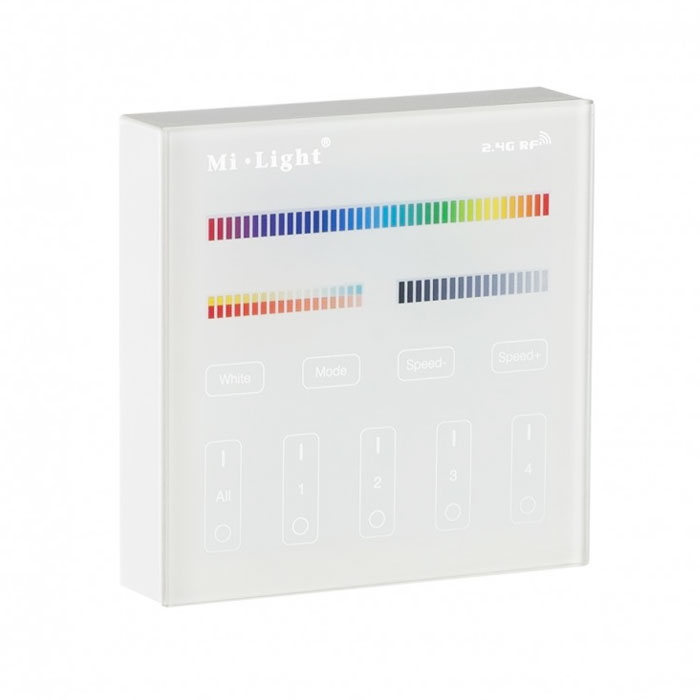

4-Zone RGB+CCT Smart Touch Panel Remote Controller - Mi-Light B4 Series

Price:   $29.95

  • Model: RGB-CCT-B4
  • Shipping Weight: 0.15kg
  • 865 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    LED Light Strips - 12V LED Tape Light with 18 SMDs/ft., 1 Chip SMD LED 3528 with LC2 Connector
    $49.95  $32.95-34%
    RGB LED Strip Lights - 12V LED Tape Light w/ LC4 Connector - 122 Lumens/ft.
    $69.95  $46.95-33%
    High CRI LED Strip Light - 24V LED Tape Light w/ LC2 Connector - High Density - 366 Lumens/ft.
    $116.95  $69.95-40%
    Outdoor LED Light Strips - Weatherproof 12V LED Tape Light with 18 SMDs/ft., 1 Chip SMD LED 3528
    $69.95  $49.95-29%
    • Details
    • Reviews
    • Tags
    • FAQ

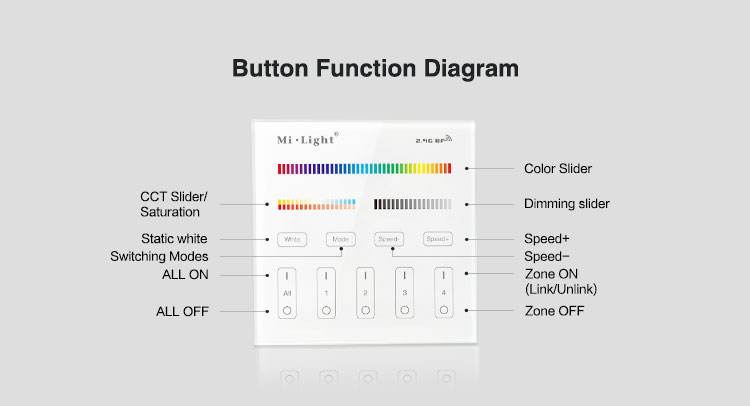

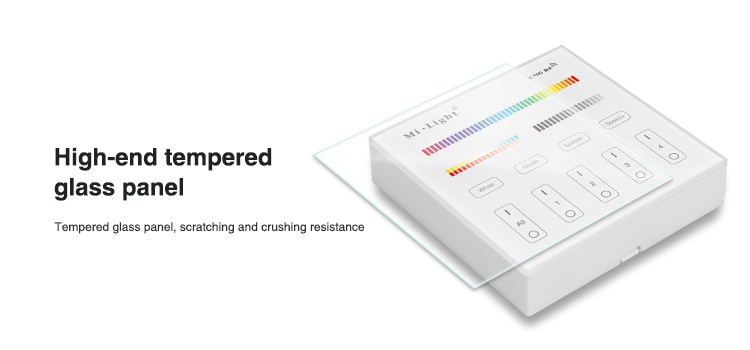

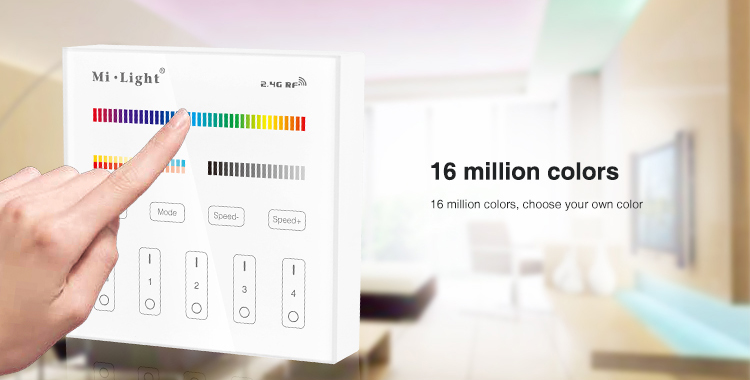

    Wall-mounted RGB+CCT controller - Mi-Light, is a wireless wall panel for brightness management with the ability to control a given RGB colour and CCT colour temperature for multi-colour devices with varying colour temperatures (eg. RGB+CCT receiver/bulb or devices included in "Table No. 2." The controller allows individual access for each zone, which can be controlled by a glass wall panel.

    Mi-Light 4 zone RGB+CCT smart panel remote controller B4 specification

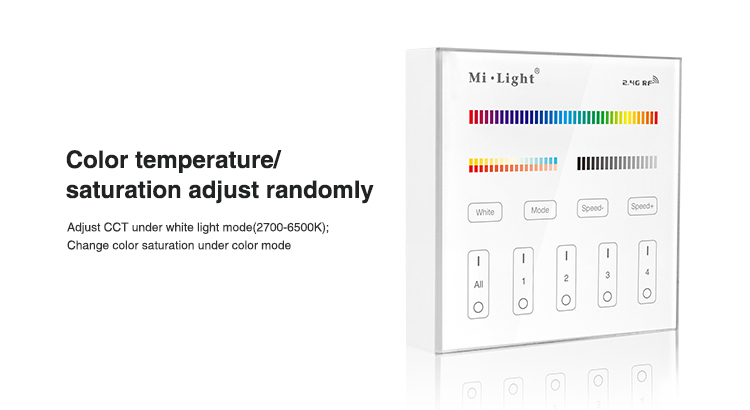

    Application For multi-colour installations with variable colour temperature RGB+CCT
    Maximum output current Dependent on the receiver used

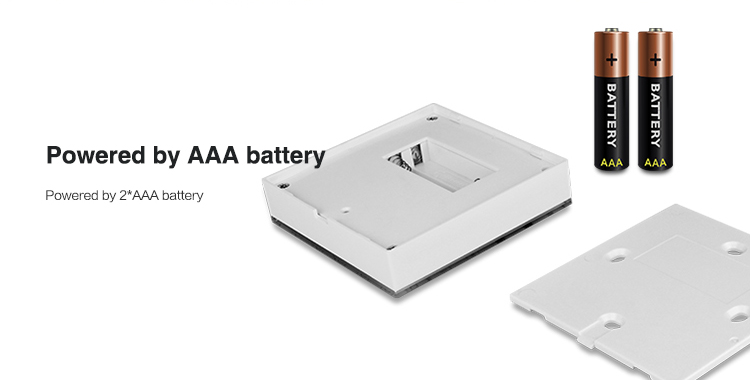

    Powered by 2 x 1,5V AAA batteries (not included)

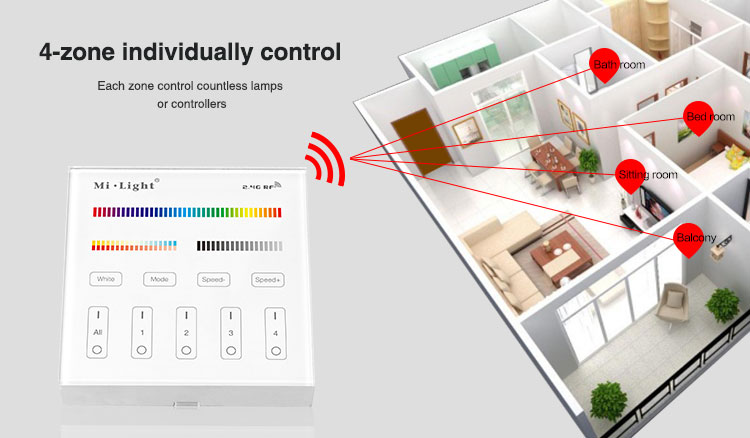

    The number of zones/channels supported 1 to 4
    Modulation method GFSK
    Controlling method Radio
    Controlling range up to 30 meters in open area
    Model number B4
    Control frequency 2400-2483.5MHz
    Power consumption in operating mode 6dBm
    Power consumption in standby mode 20uA
    Working temperature -20 – 60℃

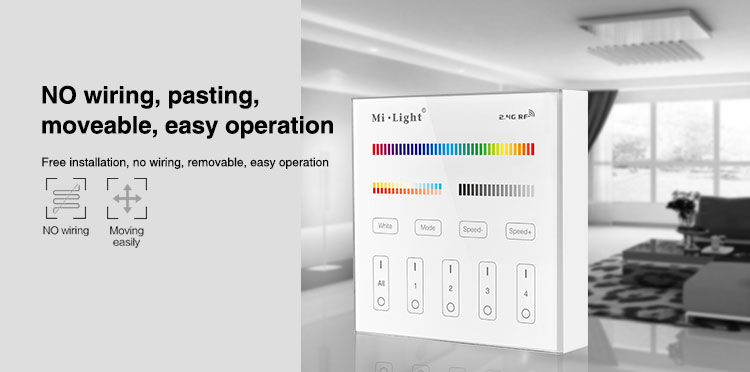

    Type of installation Surface
    Colour White
    Product compatibility See ,,Product description table 1"
    Ingress Protection IP20

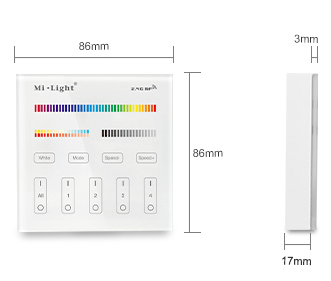

    Dimensions[mm] L86 x W86 x H20
    Certification RoHS, CE
    Warranty 2 years

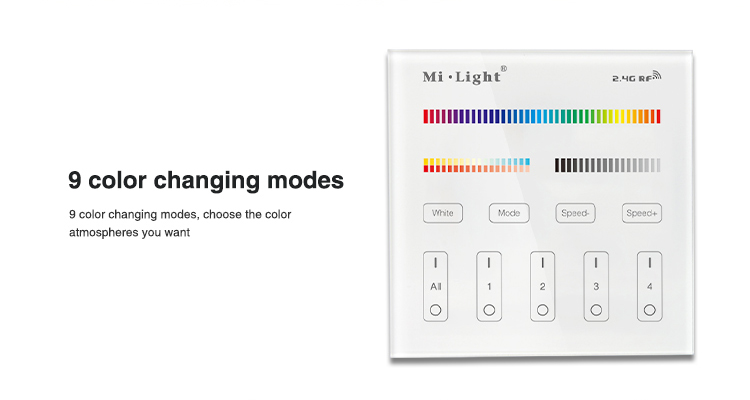

    Table 1. Table of dynamic programs - Mi-Light 4 zone RGB+CCT smart panel remote controller B4



    Number Function Speed change Brightness change Saturation change
    1 Flashing orange colour Yes Yes No
    2 Smooth transition between all colours Yes Yes Yes (saturation)
    3 Smooth transition between warm and cold colours Yes Yes No
    4 Pulsating transition between three colours and warm white and cold white Yes Yes No
    5 Jump between six colours and white warm and cold Yes Yes No
    6 Jump between random colour sequences Yes Yes No
    7 Red flashing with three flashes Yes Yes No
    8 Blue blinking ended with three flashes Yes Yes No
    9 Green flashes with three flashes Yes Yes No

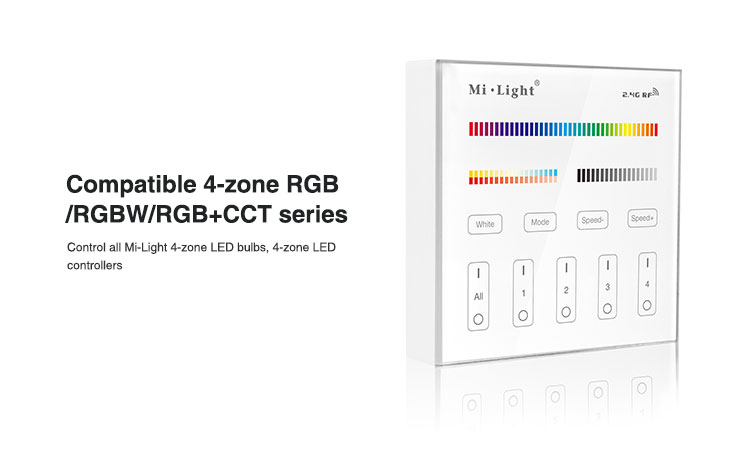

    Table 2. Table of product compatibility - Mi-Light 4 zone RGB+CCT smart panel remote controller B4



    Product code Product name
    FUT039  Mi-Light 2.4GHz RGB+CCT strip controller FUT039
    FUT015  Mi-Light 8W RGB+CCT LED light bulb FUT015
    FUT103  Mi-Light 4W GU10 RGB+CCT LED spotlight FUT103
    FUT104  Mi-Light 4W MR16 RGB+CCT LED spotlight FUT104
    FUT068  Mi-Light 6W RGB+CCT LED downlight FUT068
    FUT066 Mi-Light 12W RGB+CCT LED downlight FUT066
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2
