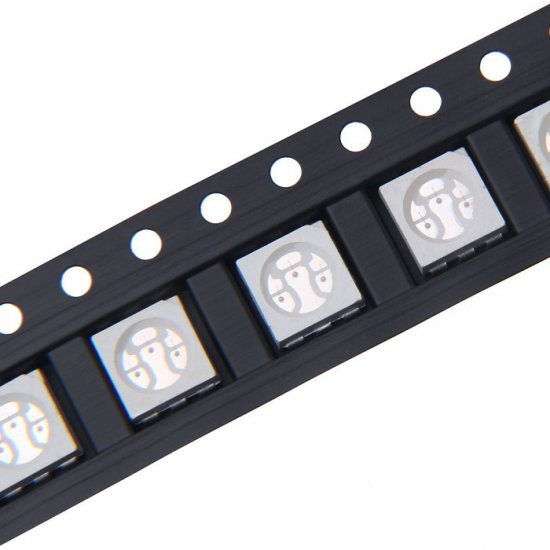

5050 SMD LED - 465nm Blue Surface Mount LED w/120 Degree Viewing Angle - 10PCS

Price:   $4.95

  • Model: 5050LEDs-BLUE
  • Shipping Weight: 0.05kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 06/04/2025)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    LED Strip Connector 2 Pin for 10mm Single Color Waterproof IP65/IP54, DIY Lead Connector Wire for Strip to Power / Dimmer or Board-to-Board Jumper,10 PCS Pack(No Wire)
    $12.95
    10mm LED Strip Connector 2 Pin for Non-waterproof Single Color Tape Light, Snap Splicer for Board-To-Wire, Pack of 10 (No Wire)
    $12.95
    2 Pin 10mm Connector For Waterproof Single Color Strip Light, Tape Light Connector Strip to Strip Middle Joint Connection, Pack of 10
    $12.95
    RGB LED Connector 4 Pins 10mm Strip to Strip for Non-Waterproof Tape Light Splice Between 2 Segment Light, Pack of 10PCS
    $12.95
    • Details
    • Reviews
    • Tags
    • FAQ

    The 5mm 3 chip surface mount component LED in Blue features a 465 nm wavelength and a 120 degree viewing angle. Price listed is per 10 unit. Also available in Green, Red, and Yellow.



    Specifications



    Continuous Forward Current 3x20 mA Forward Voltage 3.2V
    LED Brand Epistar LED Color Blue
    LED Package 5mm x 5mm LED Type 5050 SMD
    Lumen 4 Lumen Millicandela 1200mcd
    Operating Temperature -20~+80 °C Peak Forward Current 3x100mA
    Power Dissipation 3x120mW Reverse Voltage 5V
    Storage Temperature -40~+85 °C Total Power Consumption 0.192 Watts
    Viewing Angle 120 degree Wavelength 465 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.



    package Dimensions

    Part Number: 5050LEDs-Blue
    Blue 5050
    absolute maximum ratings: (TA=25°C)
    PARAMETER SYMBOL Rating UNIT
    Power Dissipation PD 3x120 mW
    Continuous Forward Current IF 3x20 mA
    Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 3x100 mA
    Reverse Voltage VR 5 V
    Operating Temperature TA -20~+80 °C
    Storage Temperature Tstg -40~+85 °C
    Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)

    Optoelectric Characteristics
    PARAMETER SYMBOL MAX TYP UNIT TEST
    View Angle of Half Power 2ø1/2 -- 120 Degree --
    Forward Voltage VF -- 3.2 V IF=20mA
    Dominant Emission Wavelength -- -- Blue -- --
    Luminous Intensity -- -- 4 lm --
    Millicandela Output IV -- 1200 mcd IF=20mA

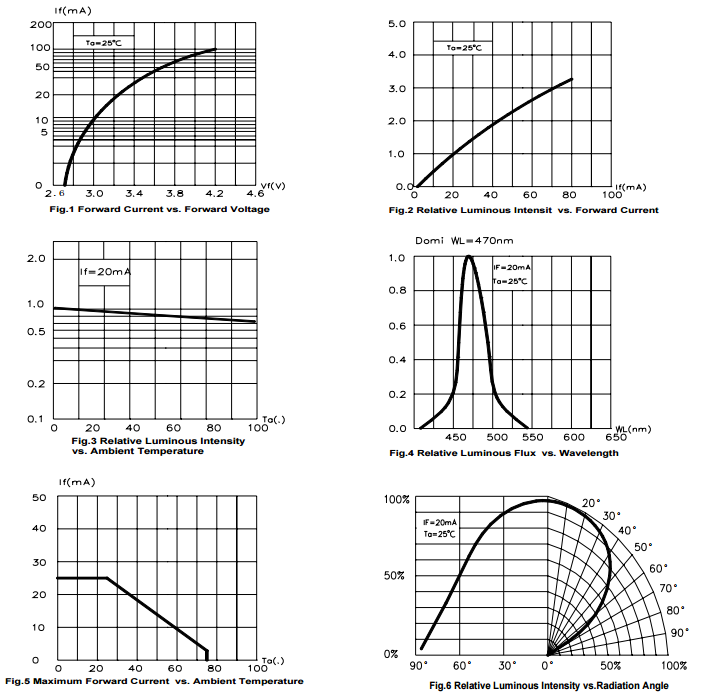

    Typical Electro-Optical Characteristics Curves
