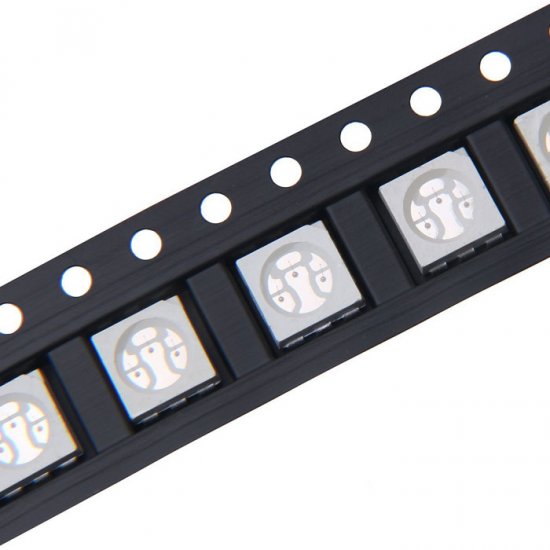

5050 SMD LED - RGB Surface Mount LED w/ 120 Degree Viewing Angle - 10PCS

Price:   $4.95

  • Model: 5050LEDs-RGB
  • Shipping Weight: 0.05kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 28/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    2Ft LED T5 Integrated Light Fixture - 9W Linkable Linear LED Task Light - 1,035 Lumens - 120V - 4000K
    $15.95
    T8 LED Tube - 32W Equivalent - Ballast Compatible F32T8 Type A - 2,200 Lumens
    $8.95
    4Ft LED T5 Integrated Light Fixture - 16W Linkable Linear LED Task Light - 1,840 Lumens - 120V - 4000K
    $19.95
    1Ft LED T5 Integrated Light Fixture - 5W Linkable Linear LED Task Light - 575 Lumens - 120V - 4000K
    $13.95
    • Details
    • Reviews
    • Tags
    • FAQ

    This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White.



    Specifications

    Continuous Forward Current 3x20 mA Wavelength

    465 nm, 520 nm, 625 nm

    Forward Voltage R:2.0 G:3.2 B:3.2 LED Brand Epistar
    LED Color RGB LED Package 5mm x 5mm
    LED Type 5050 SMD Lumen 3.14 Lumen
    Millicandela 1000mcd Operating Temperature -20~+80 °C
    Peak Forward Current 3x100mA Power Dissipation 3x120mW
    Reverse Voltage 5V Storage Temperature -40~+85 °C
    Total Power Consumption 0.192 Watts Viewing Angle 120 degree
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.

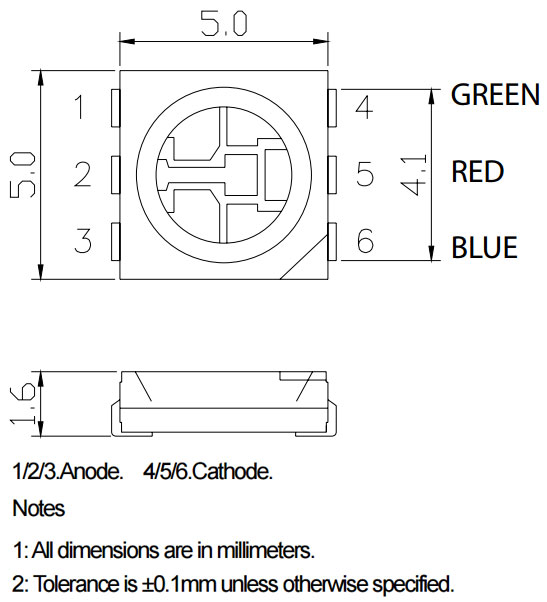

    package Dimensions



    Part Number: 5050LEDs-RGB
    RGB 5050
    absolute maximum ratings: (TA=25°C)
    PARAMETER SYMBOL Rating UNIT
    Power Dissipation PD 3x120 mW
    Continuous Forward Current IF 3x20 mA
    Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 3x100 mA
    Reverse Voltage VR 5 V
    Operating Temperature TA -20~+80 °C
    Storage Temperature Tstg -40~+85 °C
    Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)

    Optoelectric Characteristics
    PARAMETER SYMBOL MAX TYP UNIT TEST
    View Angle of Half Power 2ø1/2 -- 120 Degree --
    Forward Voltage VF R:2.2 G:3.4 B:3.4 R:2.0 G:3.2 B:3.2 V IF=20mA
    Dominant Emission Wavelength -- -- RGB -- --
    Luminous Intensity -- 3.14 -- lm --
    Millicandela Output IV -- 1000 mcd IF=20mA

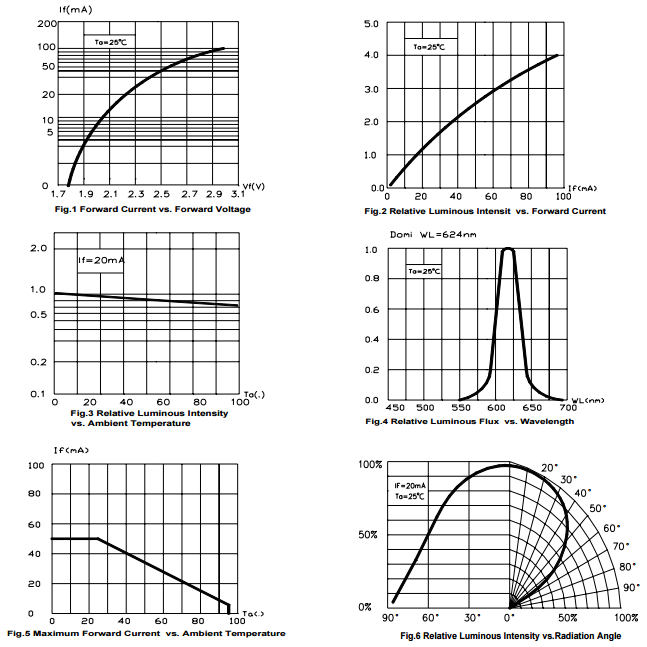

    Typical Electrical/Optical Characteristics Curves (R)

    Typical Electrical/Optical Characteristics Curves (G)

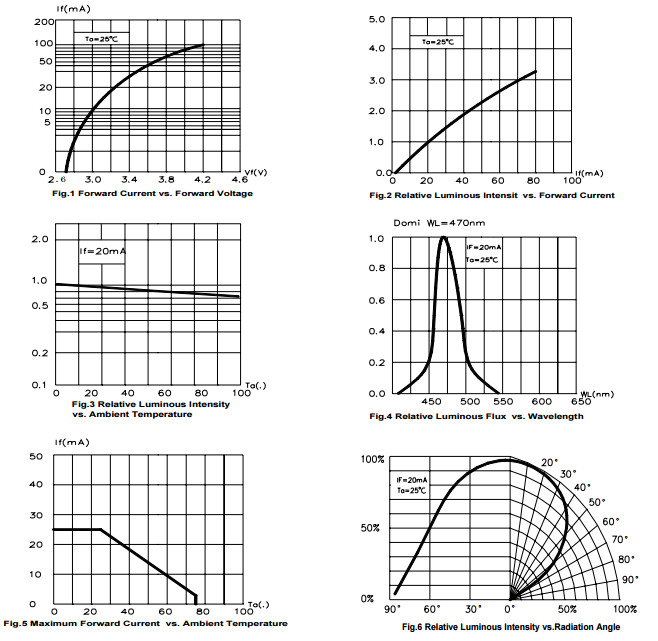

    Typical Electrical/Optical Characteristics Curves (B)
