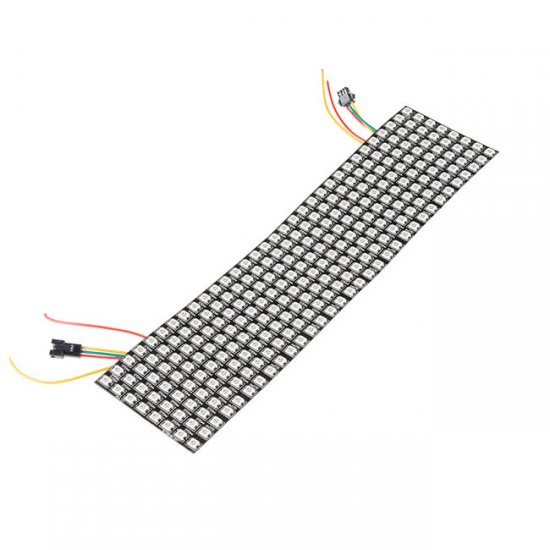

    This large 8x32 pixel WS2812B (or “NeoPixel”) flexible LED matrix is a great way to add an impressive amount of color while still being able to individually control each LED. We aren’t kidding around, that’s 256 individually addressable LEDs on a 320mm x 90mm flexible panel. You can create animations, games, or even incorporate them into a fun e-textiles project. On top of all that, thanks to its flexible backing, this LED Matrix can be bent and bowed to fit onto almost any curvy surface.

    These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 5A in most uses (15A if all LEDs are set to bright white, which is NOT recommended). Attached to each flexible LED matrix are two 3-pin JST SM connectors and two sets of bare power cables (input / output), which provide you connections for DC5V+, COM-, DAT, and GND. Needless to say, if you are looking for a large panel of addressable LEDs to fit the contours of almost any surface you’ve come to the right place.

    Note: Repeated / Over bending may significantly reduce the structural integrity of the flexible panel. It is advisable when bending it over curved surfaces to not be too rough with this product as you may damage LED traces or the panel itself. Needless to say, do NOT fold this matrix in half!



    Specifications

    Beam Angle 140 degree Light source SMD5050 RGB
    Operating voltage 5V Consumption watts 75(max)W
    Pixel pitch(mm) 10mm Pixel resolution (Dot/Panel) 256 Pixel
    Entire piece LED quantity 256pcs Printed circuit board thickness 0.25mm
    Operation Temperature -40°C-40°C Emitting Color RGB
    LED Type WS2812B Lumen per Panel R:102400, G:179200, B:48640
    IP Non-Waterproof PCB Color Black
    Watt Consumption 51W Max (per 60 LEDs)
    256 WS2812B LEDs
    All specifications are subject to change without notice.

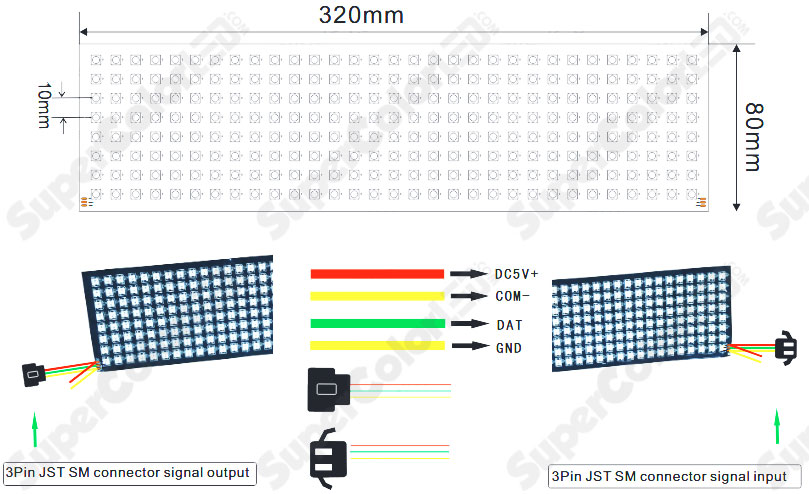

    Dimension: (Unit:mm)
