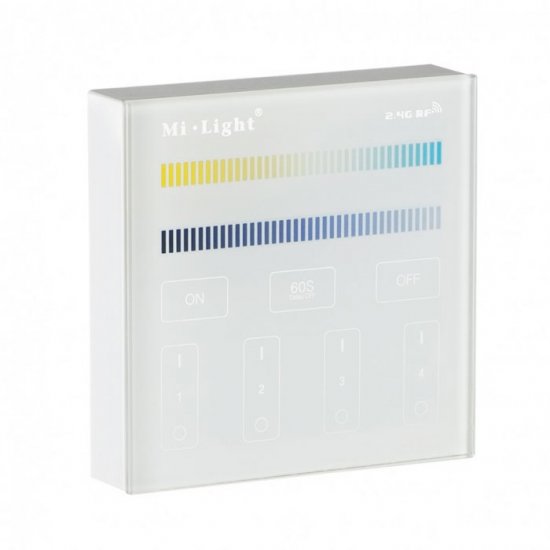

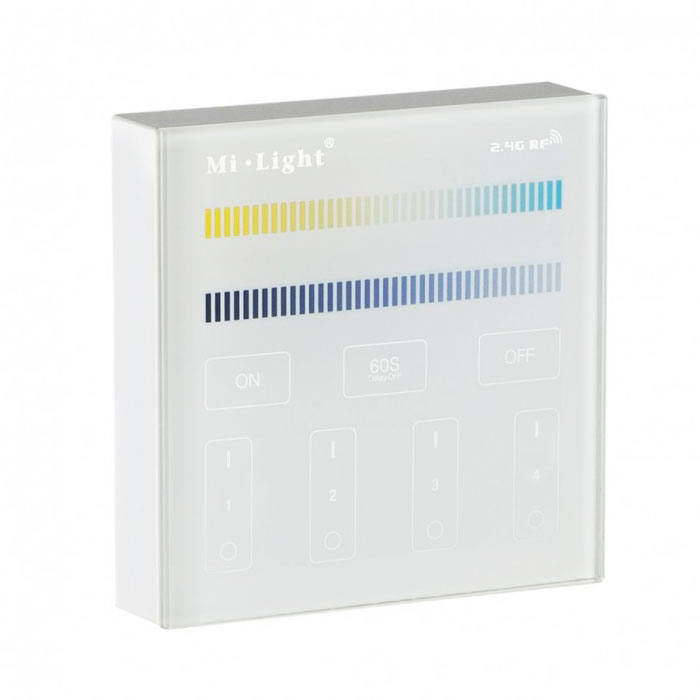

4-zone CCT Adjust Smart Touch Panel Remote Controller - Mi-light B2 Series

Price:   $29.95

  • Model: CCT-B2
  • Shipping Weight: 0.15kg
  • 965 Units in Stock

(0 reviews)
(complete orders today,deliverd around 25/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    LED Strip Connector Terminal 3 Pin 10mm Non-Waterproof IP20 for Dimmable, Dual Color, WS2812,WS2811 Digital Tape Light,Pack of 10(No Wire)
    $14.95
    LED Strip to Strip Connector 8mm 2 Pin for WATERPROOF Single Color Strip Light. Pack of 10
    $12.95
    LED Strip Lights Connector Terminal 3 Pin 10mm Waterproof IP65 and IP54 for Dimmable, Dual Color, WS2812,WS2811 Digital Tape Light,Pack of 10(No Wire)
    $14.95
    LED Light Strip Connector,8mm Board-to-Board Tape Light Splicer 2 Pin for Single Color, IP20 Non-Waterproof Middle Connection, Pack of 10 PCS
    $12.95
    • Details
    • Reviews
    • Tags
    • FAQ

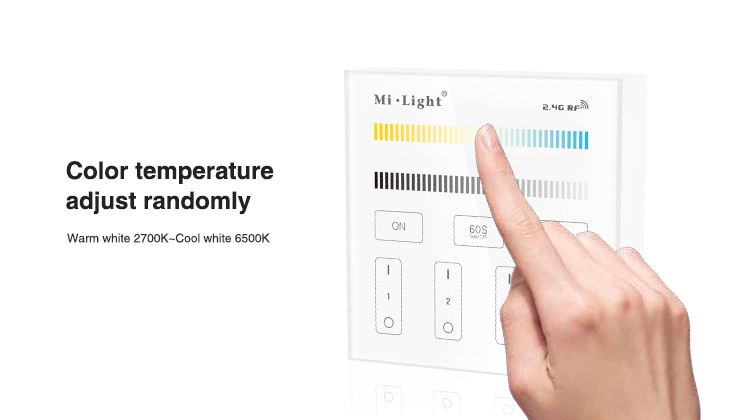

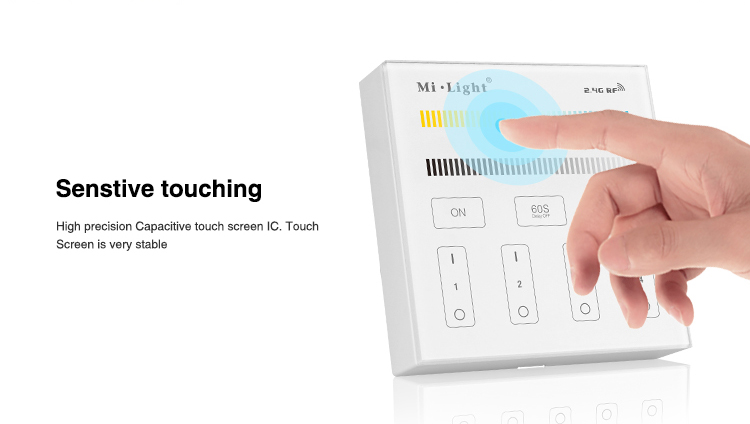

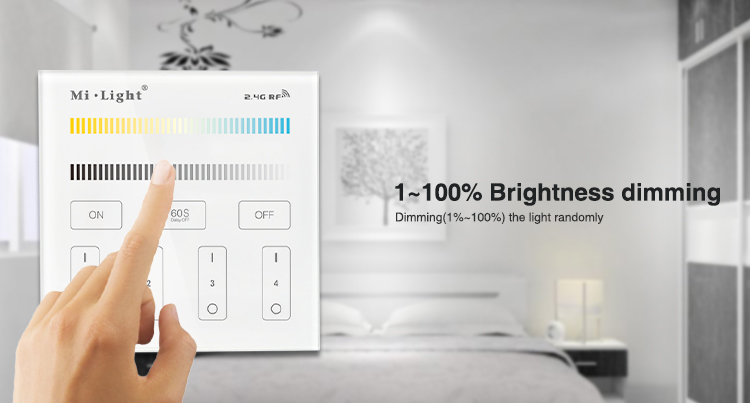

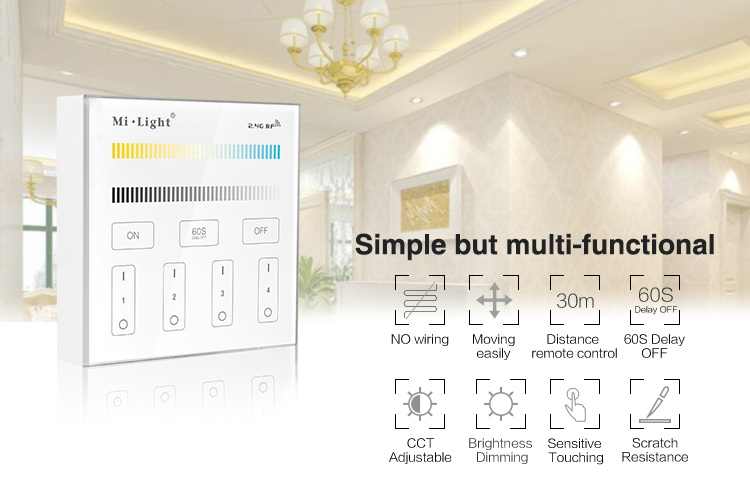

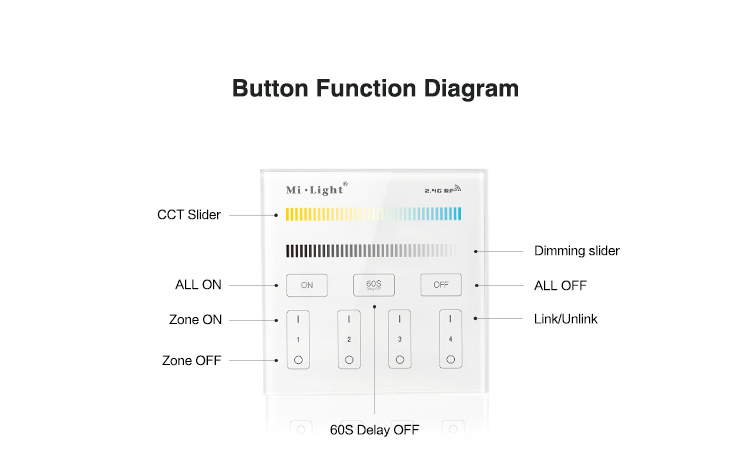

    CCT - Mi-Light wall dimmer is a wireless wall panel that allows you to manage the brightness and colour temperature of a CCT for variable colour devices (eg CCT receiver/bulb or devices included in "Table 1"). The dimmer allows individual access for each zone, which can be controlled via the glass panel. The device is designed for surface mounting. The wall panel is powered by two 1.5V AAA batteries.

    Mi-Light 4-Zone CCT adjust smart panel B2 specification



    Application For installations with variable colour temperature lights CCT
    Maximum output current Dependent on the receiver used

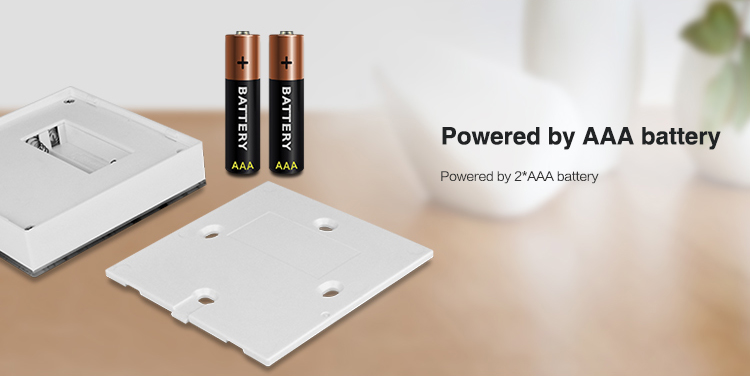

    Powered by 2 x 1,5V AAA batteries (not included)

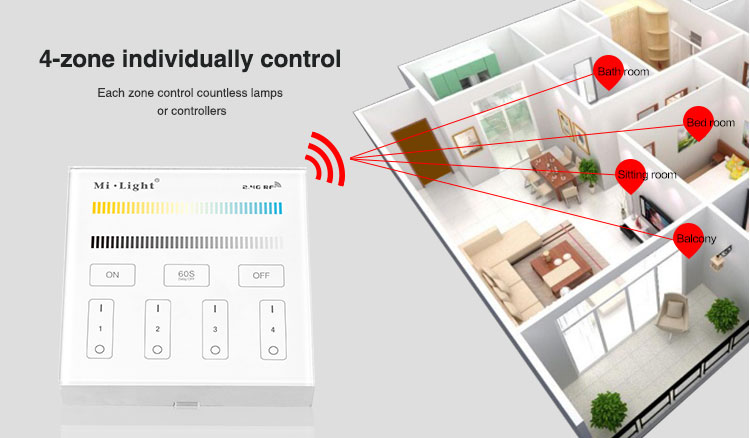

    The number of zones/channels supported 1 to 4
    Modulation method GFSK
    Controlling method Radio

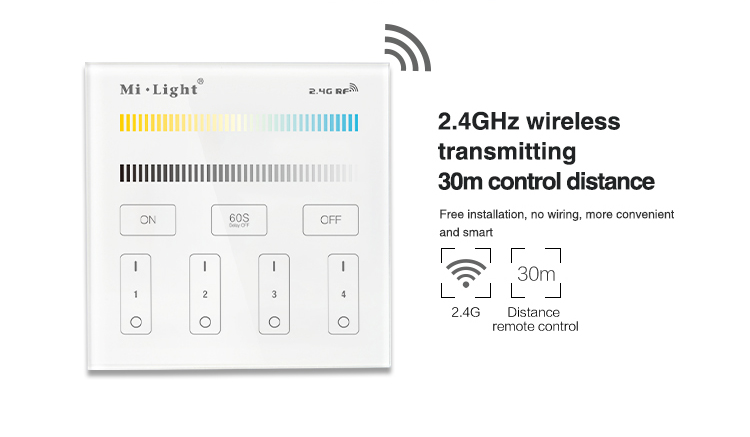

    Controlling range up to 30 meters in open area
    Control frequency 2,4GHz
    Power consumption in operating mode 5,5dBm
    Power consumption in standby mode 10uA
    Working temperature -20 – 60℃

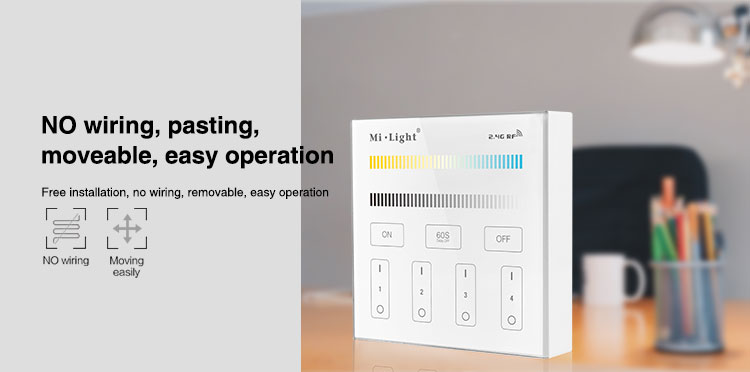

    Type of installation Surface
    Colour White
    Product compatibility See ,,Product description table 1"
    Ingress Protection IP20

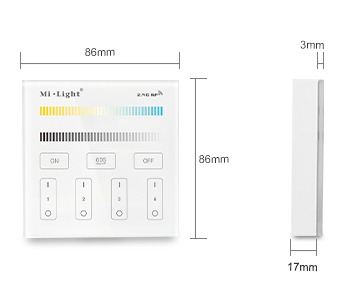

    Dimensions[mm] L86 x W86 x H21
    Certification RoHS, CE
    Warranty 2 years

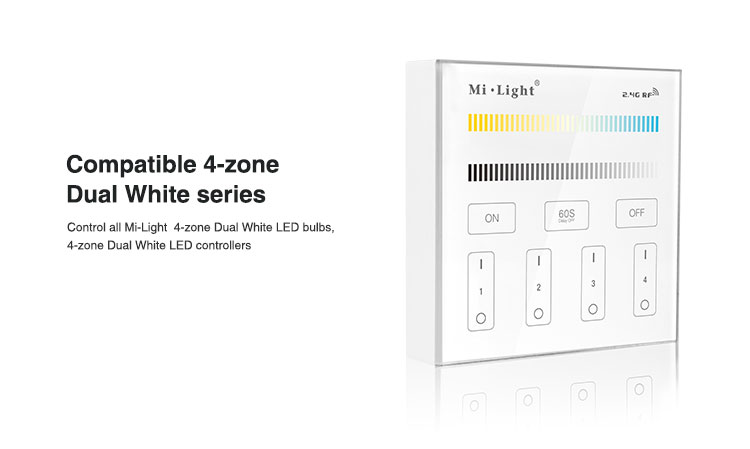

    Table 1. Compatible devices with Mi-Light 4-Zone CCT adjust smart panel B2



    Product code Product name
    FUT035  Mi-Light 4-zone colour temperature dual white LED strip controller FUT035
    FUT011  Mi-Light 5W GU10 dual white LED spotlight FUT011
    FUT091  Mi-Light 2.4GHz dual full touch 4-zone remote controller FUT091
    FUT017  Mi-Light 6W dual white LED light bulb FUT017
    FUT019  Mi-Light 9W dual white LED light bulb FUT019
    FUT060  Mi-Light 6W dual white LED downlight FUT060
    FUT061  Mi-Light 12W dual white LED downlight FUT061
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2
