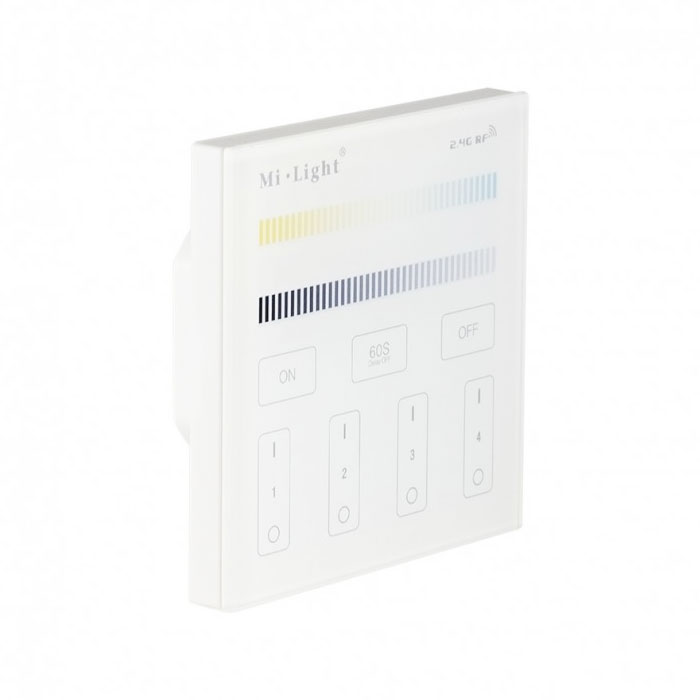

MiLight 4-Zone CCT adjust Smart Touch Panel Remote Controller For LED Strip Lights - T2 Series

Price:   $29.95

  • Model: CCT-T2
  • Shipping Weight: 0.15kg
  • 865 Units in Stock

(0 reviews)

Please Choose:

  • AC90~110V
  • AC180V-240V
(complete orders today,deliverd around 25/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Mean Well LED Switching Power Supply - LPC Series 50-60W Single Output Constant Current LED Driver
    $17.95
    Mean Well LED Switching Power Supply - LPV Series 30-40W Single Output LED Power Supplies - 5V DC
    $24.95
    MeanWell LPV Series 20-120W Single Output LED Power Supply Waterproof IP67 - 12V DC
    $19.95
    Mean Well LED Switching Power Supply - LPC Series 30-35W Single Output Constant Current LED Driver
    $16.95
    • Details
    • Reviews
    • Tags
    • FAQ

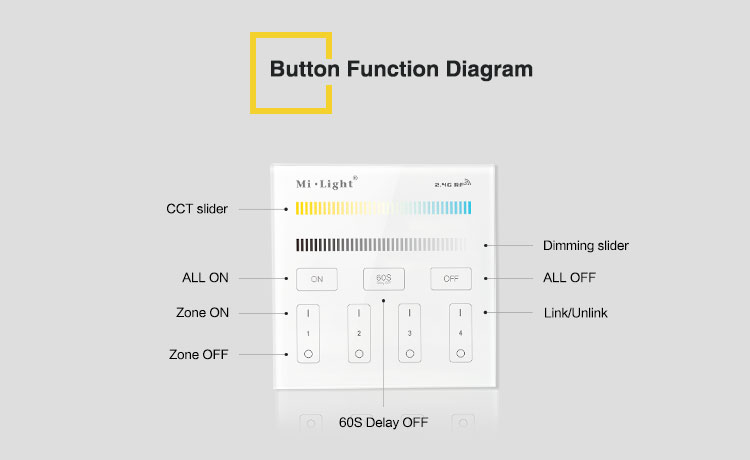

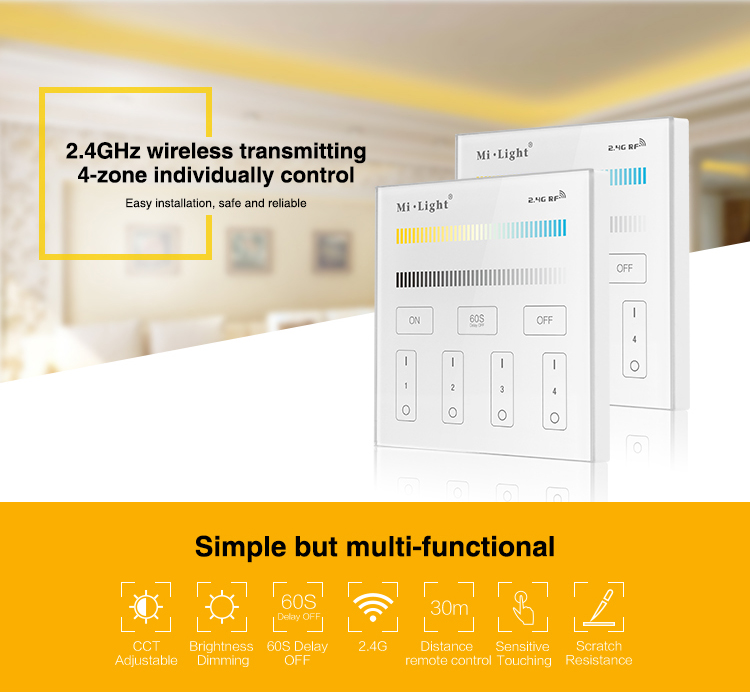

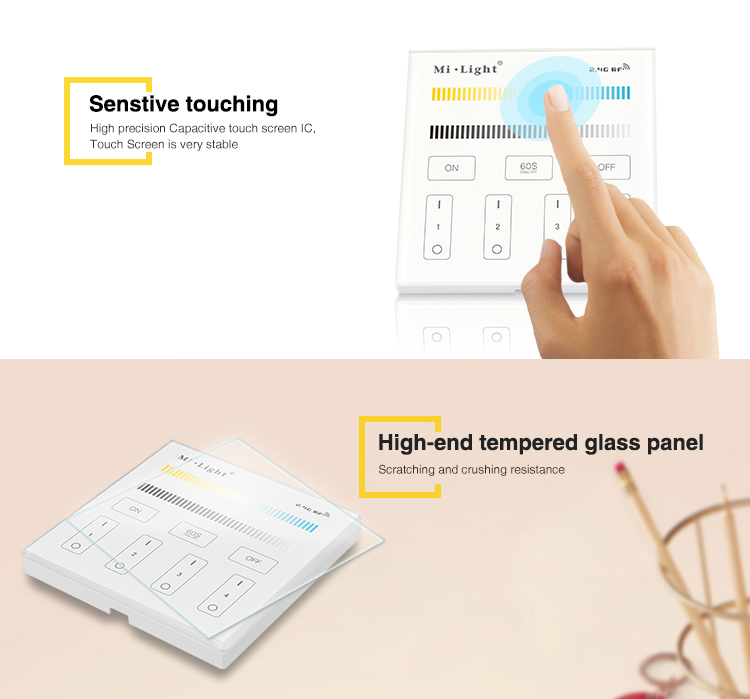

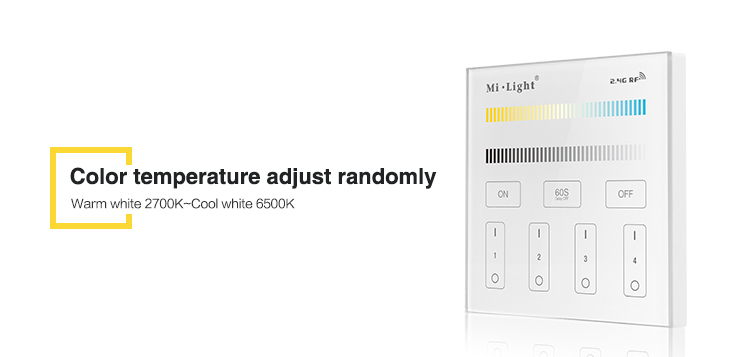

    LED wall-mounted radio dimmers - 4 ZONE - CCT - Mi-Light is a wireless wall panel that can manage with brightness and CCT colour temperature for devices with variable colour temperature (eg CCT receiver/bulb or devices included in table 1). The dimmer allows individual access for each of the zones, which can be controlled via a glass wall panel. The device is designed for a flush mounting in fi60 box. The wall panel is supplied with AC90~110V or AC180~240V mains voltage.

    Mi-Light 4-zone CCT adjust smart panel remote controller T2 specification



    Application For installations with variable colour temperature lights CCT
    Maximum output current Dependent on the receiver used
    Input voltage 180-240V AC

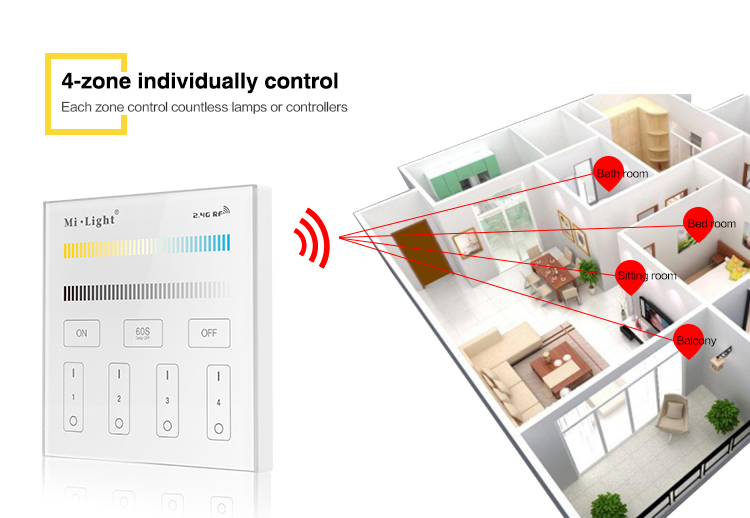

    The number of zones/channels supported 1 to 4
    Modulation method GFSK
    Controlling method Radio
    Controlling range up to 30 meters in open area

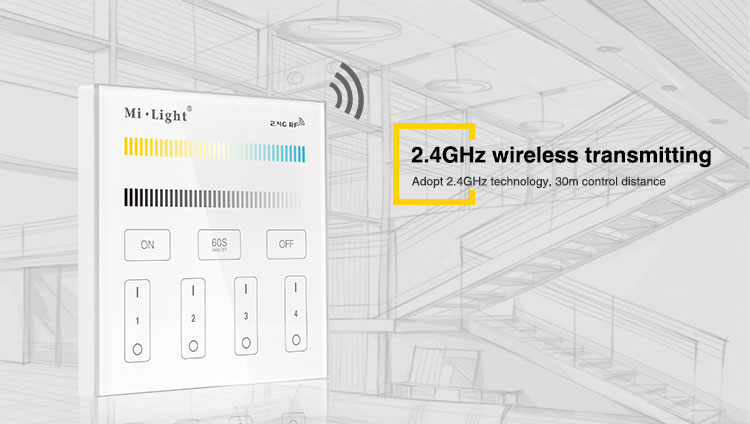

    Control frequency 2,4GHz
    Power consumption in operating mode 5,5dBm
    Power consumption in standby mode 10uA
    Working temperature -20 – 60℃
    Type of installation Flush mounting inside fi60 box
    Colour White
    Ingress Protection IP20

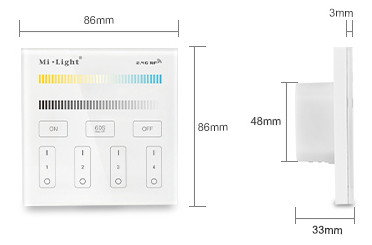

    Dimensions[mm] L86 x W86 x H33
    Certification RoHS, CE
    Warranty 2 years

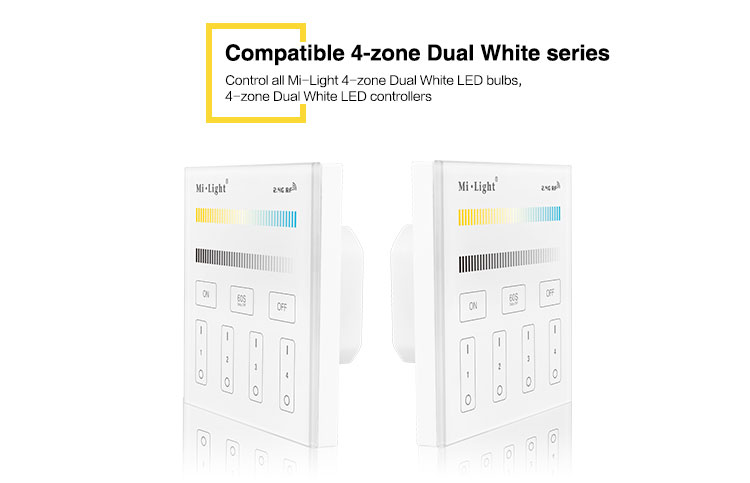

    Table 1. Compatible devices with Mi-Light 4-zone CCT adjust smart panel remote controller T2



    Product code Product name
    FUT035  Mi-Light 4-zone colour temperature dual white LED strip controller FUT035
    FUT009  Mi-Light 4W GU10 dual white LED spotlight FUT009
    FUT012  Mi-Light 9W RGB+CCT LED light bulb FUT012
    FUT017  Mi-Light 6W dual white LED light bulb FUT017
    FUT019  Mi-Light 9W dual white LED light bulb FUT019
    FUT060  Mi-Light 6W dual white LED downlight FUT060
    FUT061  Mi-Light 12W dual white LED downlight FUT061
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2
