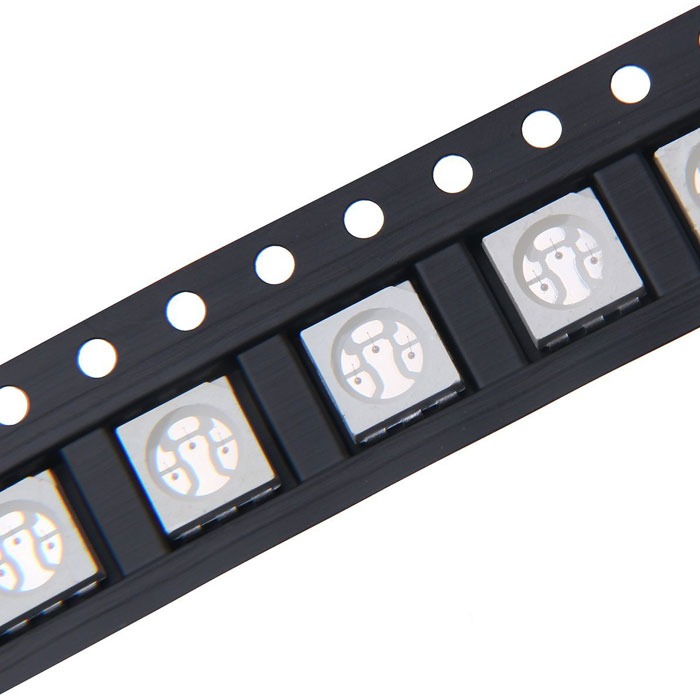

5050 SMD LED - 590nm Yellow Surface Mount LED w/120 Degree Viewing Angle - 10PCS

Price:   $4.59

  • Model: 5050LEDs-YELLOW
  • Shipping Weight: 0.05kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 25/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    8mm Single Color LED Strip Lights CPS Adapter Cable Clamp,Cables Connect Adapter and LED Strips, Seamlessly Extend Flexible Light Strip
    $1.89
    LED Strip to Strip Connector 8mm 2 Pin for WATERPROOF Single Color Strip Light. Pack of 10
    $12.95
    LED Strip Connector Terminal 3 Pin 10mm Non-Waterproof IP20 for Dimmable, Dual Color, WS2812,WS2811 Digital Tape Light,Pack of 10(No Wire)
    $14.95
    LED Strip Lights Connector Terminal 3 Pin 10mm Waterproof IP65 and IP54 for Dimmable, Dual Color, WS2812,WS2811 Digital Tape Light,Pack of 10(No Wire)
    $14.95
    • Details
    • Reviews
    • Tags
    • FAQ

    The 5mm 3 chip surface mount component LED in Yellow features a 590 nm wavelength and a 120 degree viewing angle.  Price listed is per 10 unit, Also available in Green, Red, and Blue.



    Specifications



    Continuous Forward Current 3x20 mA Forward Voltage 2.0V
    LED Brand Epistar LED Color Yellow
    LED Package 5mm x 5mm LED Type 5050 SMD
    Lumen 4 Lumen Maximum Forward Voltage 2.2V
    Millicandela 1200mcd Operating Temperature -20~+80 °C
    Peak Forward Current 3x100mA Power Dissipation 3x120mW
    Reverse Voltage 5V Storage Temperature -40~+85 °C
    Total Power Consumption 0.12 Watts Viewing Angle 120 degree
    Wavelength 590 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.

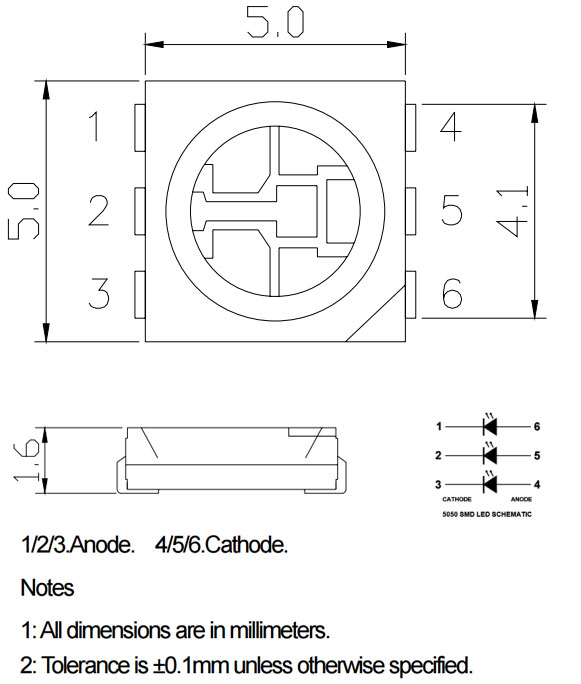

    package Dimensions

    Part Number: 5050LEDs-Yellow
    Yellow 5050
    absolute maximum ratings: (TA=25°C)
    PARAMETER SYMBOL Rating UNIT
    Power Dissipation PD 3x120 mW
    Continuous Forward Current IF 3x20 mA
    Peak Forward Current (1/10th duty cycle, 0.1ms pulse width) IFM 3x100 mA
    Reverse Voltage VR 5 V
    Operating Temperature TA -20~+80 °C
    Storage Temperature Tstg -40~+85 °C
    Lead Soldering Temperature (3mm from body) 260C (for 3 seconds)

    Optoelectric Characteristics
    PARAMETER SYMBOL MAX TYP UNIT TEST
    View Angle of Half Power 2ø1/2 -- 120 Degree --
    Forward Voltage VF 2.2 2 V IF=20mA
    Dominant Emission Wavelength -- -- Yellow -- --
    Luminous Intensity -- -- 4 lm --
    Millicandela Output IV -- 1200 mcd IF=20mA

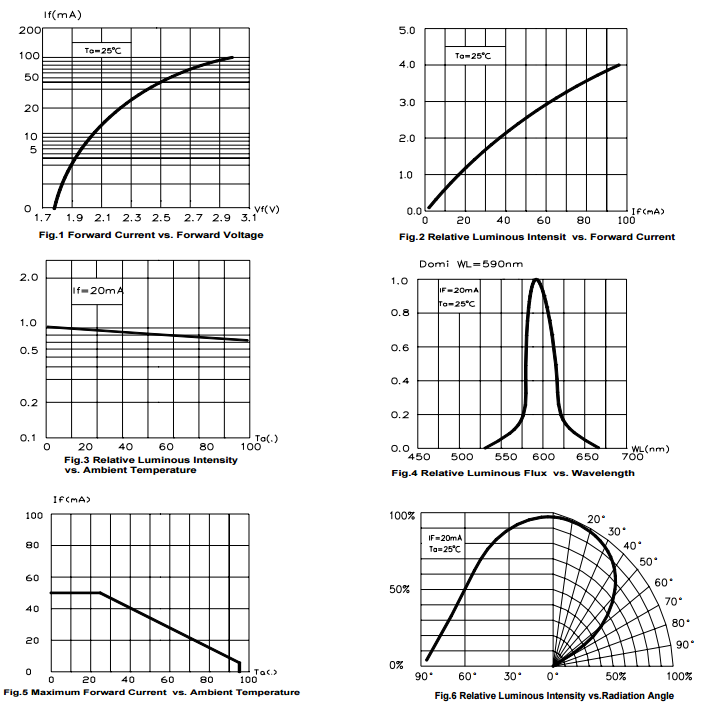

    Typical Electro-Optical Characteristics Curves
