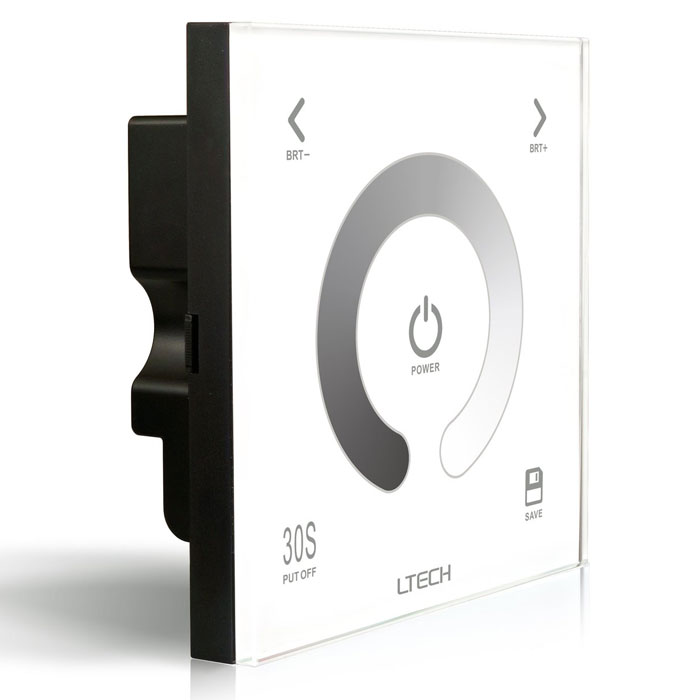

D1 Wall-mounted Touch Panel Dimmer Controller For 3528 5050 Single Color LED Strip Tape Lighting 12-24V 12A 144W 288W (5 Year Warranty)

Price:   $29.95

  • Model: DIM-TD1
  • Shipping Weight: 0.18kg
  • 869 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Molding Style Recessed Aluminum Profile Housing for LED Strip Lights - Anodized Aluminum LED Channel
    $27.95
    21x26mm Deep Recessed Aluminum Profile Housing for LED Strip Lights - LR2126 Series
    $16.95
    90x35mm Deep Recessed Aluminum Profile Housing for LED Strip Lights - LE9035 Series
    $24.95
    65x35mm Deep Recessed Aluminum Profile Housing for LED Strip Lights - LE6535 Series
    $19.95
    • Details
    • Reviews
    • Tags
    • FAQ

    D series wall-mounted touch panel controller -single zone series is widely installed in commercial / office/household. Range from Single color Controller / CT Controller /RGB Controller /RGBW Controller four types. Applies for various kinds LEDs.



    Technical Specs
    Input Voltage: DC12V-24V
    Load Current: 4A*3CH Max 12A
    Max Output Power: 144W (12V), 288W(24V)
    Grey Scale Level: 4096*4096*4096*4096
    Working Temperature: -20-60 ¡æ

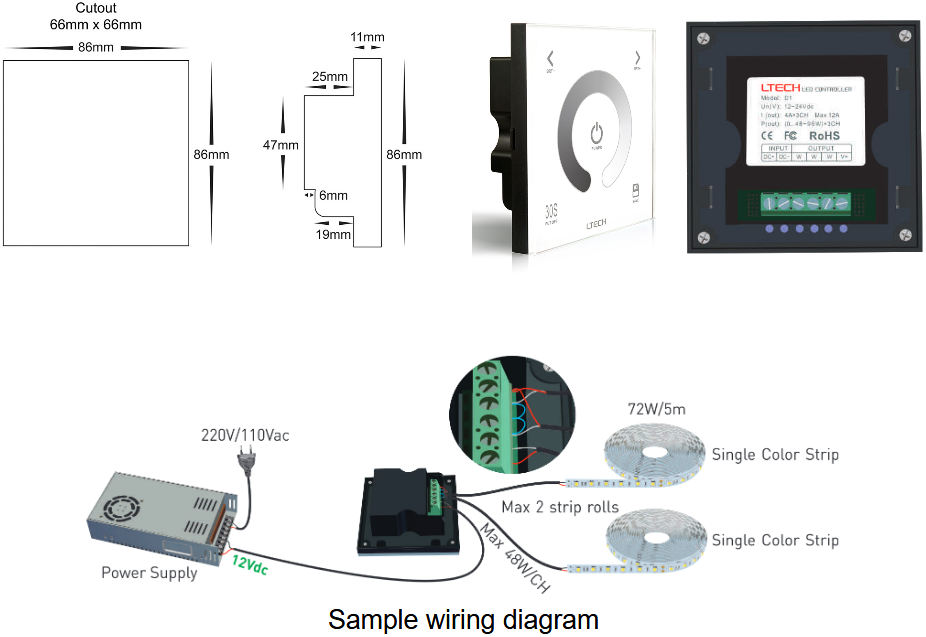

    Dimensions: L86*W86*H36(mm)
    Weight(N.W.): 162g



    Feature
    5 years warranty.

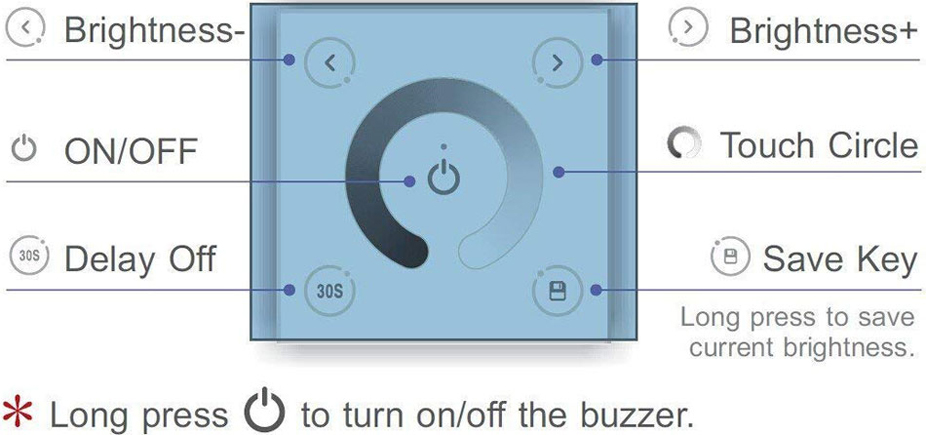

    High-grade tempered glass panel. Humanized touch circle. LED night indicator.
    Latest human detection design. Capacitive touching sensor. Touching along with chord music.
    T-PWM dimming technology/ 4096 gray scale.
    Scenes Save & playback, Users could save the designed lighting effects anytime, anywhere for playback next time.
