D3 Wall-mounted Touch Panel RGB Controller For 3528 5050 Multi-color LED Strip Lighting 12-24V 12A 144W 288W (5 Year Warranty)

Price:   $34.95

  • Model: RGB-TD3
  • Shipping Weight: 0.18kg
  • 866 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    17x08mm Low Profile Surface Mount LED Profile Housing for LED Strip Lights - LS1708 Series
    $12.95
    17x14mm Deep Surface Mount Aluminum Profile Housing for LED Strip Lights - LS1714 Series
    $14.95
    23x10mm Low Profile Surface Mount LED Profile Housing for LED Strip Lights - LS2310 Series
    $14.95
    21x26mm Deep Recessed Aluminum Profile Housing for LED Strip Lights - LR2126 Series
    $16.95
    • Details
    • Reviews
    • Tags
    • FAQ



    Technical Specs
    Input Voltage: DC12V-24V
    Load Current: 4A*3CH Max 12A
    Max Output Power: 144W (12V), 288W(24V)
    Grey Scale Level: 4096*4096*4096*4096
    Working Temperature: -20-60 ¡æ

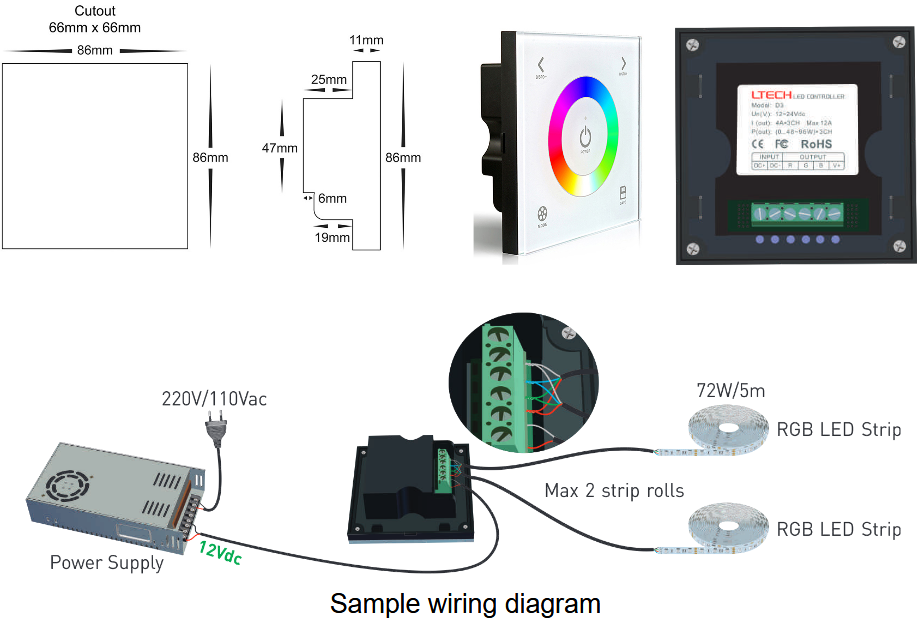

    Dimensions: L86*W86*H36(mm)
    Weight(N.W.): 162g



    The Changing Mode
    A. Static Red
    B. Static Green
    C. Static Blue
    D. Static Yellow
    E. Static Purple
    F. Static Cyan
    G. Static White
    H. RGB Skipping
    I. 7 Colors Skipping
    J. RGB Smooth
    K. 7 Colors Smooth



    Feature
    5 years warranty.
    High-grade tempered glass panel. Humanized touch circle. LED night indicator.
    Latest human detection design. Capacitive touching sensor. Touching along with chord music.
    T-PWM dimming technology/ 4096 gray scale.
    Scenes Save & playback, Users could save the designed lighting effects anytime, anywhere for playback next time.
