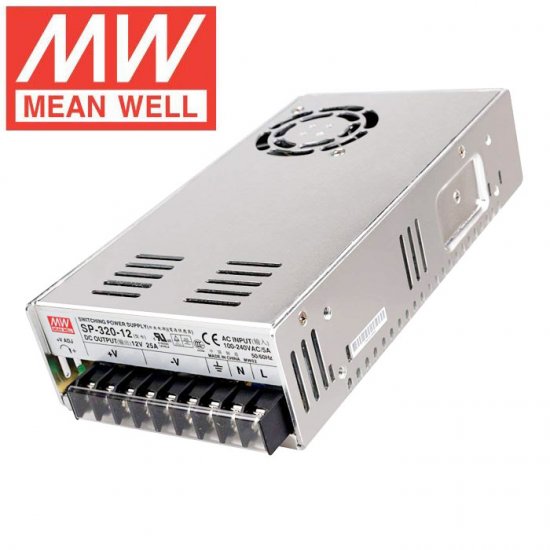

Mean Well LED Switching Power Supply - SP Series 100-750W Enclosed Power Supply with Built-in PFC - 12V DC

Price: Starting at: $54.95

Model: SP-XXX-12
Shipping Weight: 0.55kg
1965 Units in Stock

(0 reviews)

Please Choose:

Select Power Cord:

Without Power Cord
With Power Cord ( +$4.00 )

Select Wattage:

100 Watts
150 Watts ( +$12.00 )
200 Watts ( +$25.00 )
240 Watts ( +$35.00 )
320 Watts ( +$55.00 )
480 Watts ( +$125.00 )
750 Watts ( +$235.00 )

(complete orders today,deliverd around 25/11/2024)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

18W T8 LED Tube - 2,070 Lumens - 4ft - Ballast Bypass Type B - 32W Equivalent - 5000K/4000K

$6.95

T8 LED Tube - 32W Equivalent - Ballast Bypass F32T8 Type B - 2,200 Lumens

$6.95

18W T8 LED Tube - 2,000 Lumens - 4ft - Ballast Bypass Type B - 32W Equivalent - 5000K/4000K/3000K

$6.95

Single Color LED Module - Linear Constant Current Sign Module w/ 4 SMD LEDs, 80-Pack

$69.95

Details
Reviews
Tags
FAQ

* Universal AC input / Full range * Built-in active PFC function, PF>0.93
* Protections: Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Remote ON-OFF control(Optional)
* LED indicator for power on
* 100% full load burn-in test
* Fixed switching frequency at PFC:67KHz PWM:134KHz
* 3 years warranty
* Made by Mean Well
* UL 60950-1 approved for safety when used with 3-prong grounded AC cord (not included)

Specifications

Connection Type	Screw Terminals	Dimmable	No
Input Frequency Range	47 ~ 63 Hz	Input Voltage	85 ~ 264 VAC
IP Rating	Non-Waterproof	Output Channels	Single
Output Voltage DC	12 VDC	Built-in PFC Function	Yes
Power Supply Type	Enclosed	Standards And Certifications	RoHS Compliant, UL Recognized
Type	Power Supplies	UL Compliance Number	UL 60950-1
Volts	12 VDC
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.

Manuals & Resources

Mean Well SP Series 100W Technical Drawing

Mean Well SP Series 150W Technical Drawing

Mean Well SP Series 200W Technical Drawing

Mean Well SP Series 240W Technical Drawing

Mean Well SP Series 320W Technical Drawing

Mean Well SP Series 480W Technical Drawing

Mean Well SP Series 750W Technical Drawing
