10mm LED Strip Connector 2 Pin for Non-waterproof Single Color Tape Light, Snap Splicer for Board-To-Wire, Pack of 10 (No Wire)

Price:   $12.95

  • Model: NFLS-2CDH10M-IP20
  • Shipping Weight: 0.02kg
  • 9999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 25/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Color Changing LED Flood Lights - 24V MiLight 10 Watt RGBWW Flood Fixture
    $69.95
    Color Changing LED Flood Lights - MiLight 100 Watt RGBWW Flood Fixture
    $399.95
    Milight RGBWW LED Ceiling downlight 9 Watt
    $39.95
    Milight IP54 Waterproof RGBWW LED Downlight 15 Watt
    $39.95
    • Details
    • Reviews
    • Tags
    • FAQ

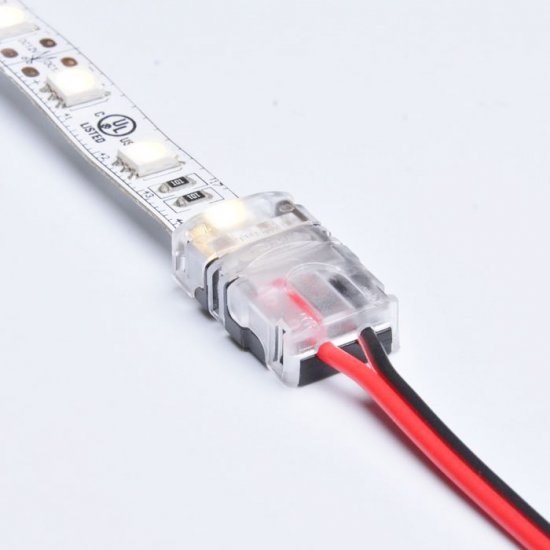

    10mm wide 2 pin solderless flexible strip light connector terminal mainly designed to link Non-waterproof strip light to 2 conductor extension wire. No need stripping wire insulation and you can determine wire gauge and length as you want in linear lighting project with this connector.Powerful,reliable,safe and easy to use. Free you from difficult and dangerous soldering iron operation. Price for 10 PCS.



    Feature

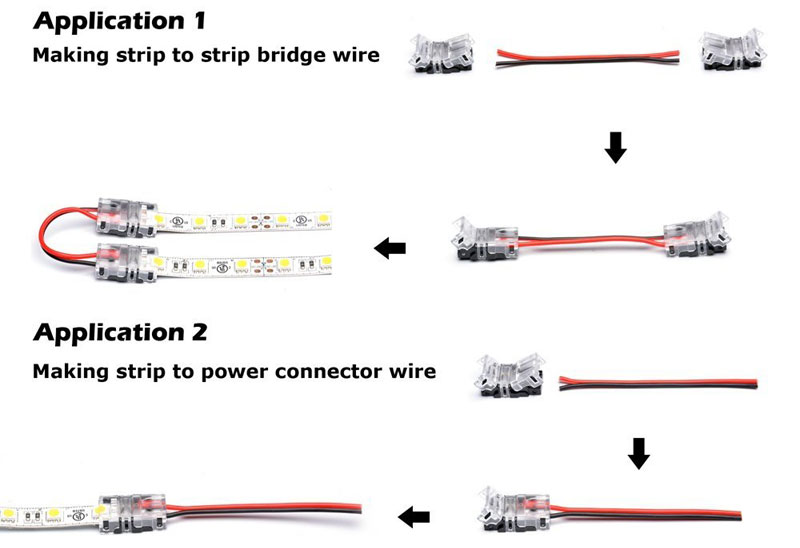

    One end for strip light and another end for extension wire (22,20,and 18 AWG), easily DIY lead connector wire or strip-to-strip-bridge (jumper) with any length.No need stripping wire insulation before connection (pierce-to-contact), easily connect your led strip to power or dimmer without any soldering, just a pliers needed
    Widely applicable for IP20 Non-waterproof tape light like 10mm SMD5050 /5630 /2835 /5730 in different LED density ranging 30~90 LEDs per meter
    Clear Cap that will not mask light of first SMD thus hardly see dark area in your lighting space. Make lighting effect more uniform
    Powerful with as much as total 5A current supported, allow you to connect longer LED strip by one connector,reducing cost and connection work
    The pin will go through PCB from BACK of strip, which can grip strip light tightly and wire-end blade go through insulation to contact conductor inside cable, you never worry strip light or wire moving out of connector. Even workable to strip light with 3M VHB red foam adhesive tape.
