LED Strip Connector 8mm 2 Pin for Waterproof Single Color Tape Light, Pack of 10(No Wire)

Price:   $12.95

  • Model: WFLS-2CDH8M-IP20
  • Shipping Weight: 0.02kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 27/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    100V - 240V To DC 12V 5A 60W Switching Power Supply Adapter for 5050/3528 LED Strip Lights
    $19.95
    8mm Single Color LED Strip Lights CPS Adapter Cable Clamp,Cables Connect Adapter and LED Strips, Seamlessly Extend Flexible Light Strip
    $1.89
    LE Power Adapter, Transformers, Power Supply For LED Strip, Output 12V DC, 3A Max, 36 Watt Max
    $16.95
    5V 10A switching power supply
    $23.95
    • Details
    • Reviews
    • Tags
    • FAQ

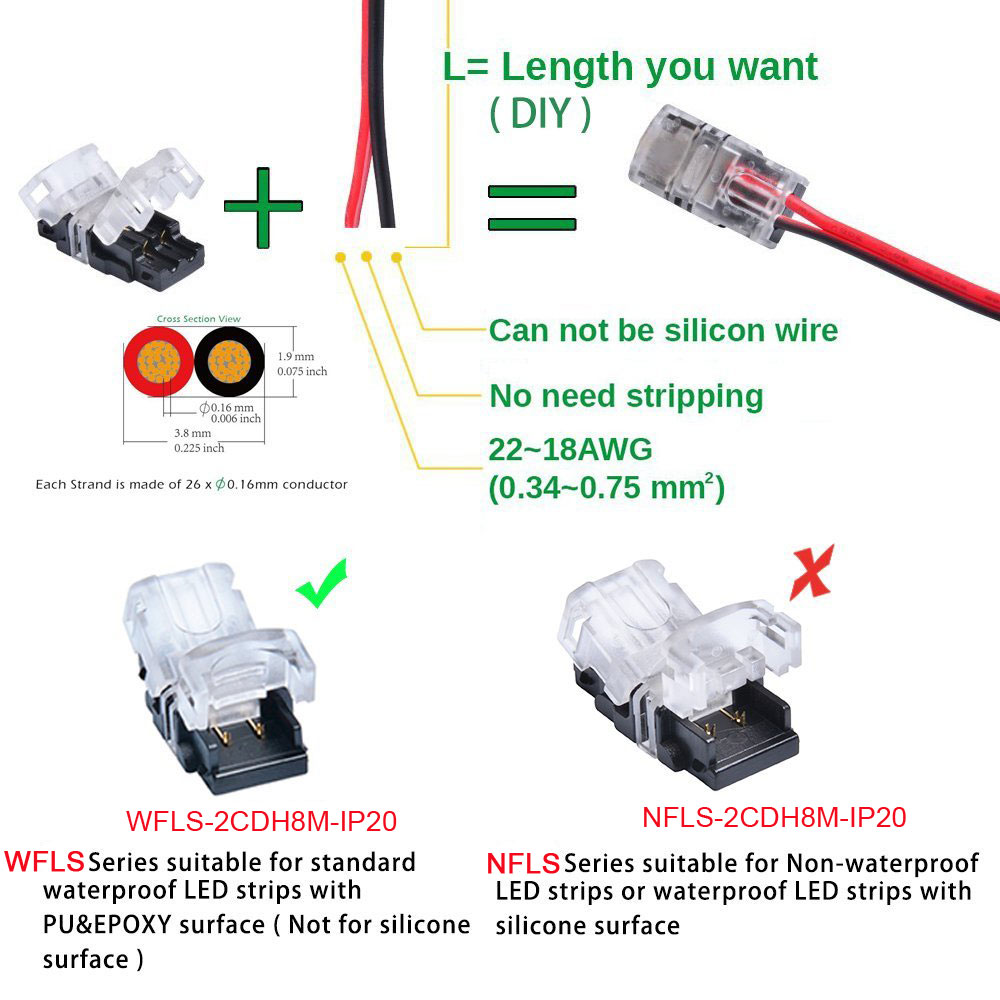

    8mm wide 2 pin solderless flexible strip light connector designed to link waterproof strip light to 2 conductor extension wire. No need stripping wire insulation nor waterproof coating layer of strip light. Determine wire gauge and length as you want in linear lighting project with this connector.Powerful,reliable,safe and easy to use.Free you from difficult and dangerous soldering iron operation.Price for 10 PCS.



    LED Strip Type It Can Work With



    Normal 8mm single color LED strip like SMD3528,SMD2835,and SMD3014,etc.
    Other IP65/IP54 rated LED tape light 8mm with 2 solder pad.
    SPECIAL NOTE:This connector NOT for Pure Silicon waterproof coating LED strip light. If you have this kind of strip light,just buy our IP20 version which is still workable without stripping silicon coating. The link as below

    https://www.supercolorleds.com/installation-accessories-c-81_90/8mm-led-connector-2-pin-for-nonwaterproof-single-color-strip-light-efficient-wire-to-board-terminal-splicer-pack-of-10-pcs-p-824.htm



    Feature



    One end for strip light and another end for extension wire, DIY a lead connector wire or strip to strip jumper with any length.Applicable for IP65/IP54 strip light (2 solder pad) in different LED density ranging 30~120 LEDs per meter.
    No need stripping wire insulation nor waterproof coating of strip light before connection (pierce-to-contact) , easily connect your led strip to power, dimmer or controller without any soldering, just a pliers needed.
    Clear Cap that will not mask light of first LED thus hardly see dark area in your lighting space. Make lighting effect more uniform.
    Powerful with as much as total 5A current supported, allow you to connect longer LED strip by one connector,reducing cost and connection work.
    With help of innovative inner-arc cap to fit strip light coating surface and piercing contact design, connector can grip strip light tightly,never worry strip light or wire moving out of connector. Even workable to strip light with 3M VHB red foam adhesive tape.
