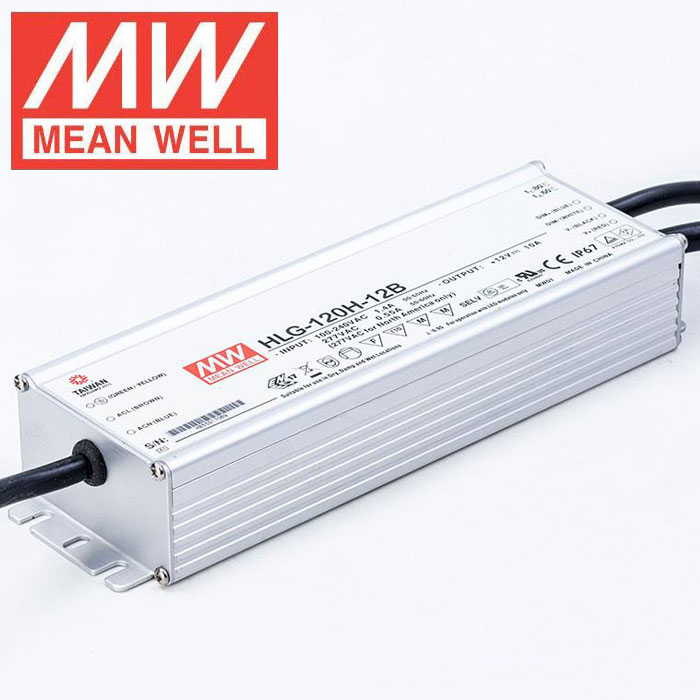

Mean Well LED Switching Power Supply - HLG Series 40-600W AC Dimmable LED Constant Current Driver - 12V DC, B-Type

Price: Starting at: $32.95

Model: HLG-XXXH-12B
Shipping Weight: 1.25kg
1965 Units in Stock

(0 reviews)

Please Choose:

Select Power Cord:

Without Power Cord
With Power Cord ( +$4.00 )

Select Output Rated Current:

3330mA
5000mA ( +$12.00 )
10000mA ( +$20.00 )
12500mA ( +$24.00 )
13000mA ( +$29.00 )
16000mA ( +$49.00 )
40000mA ( +$185.00 )

(complete orders today,deliverd around 28/11/2024)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

8mm LED Connector 2 Pin for Non-Waterproof Single Color Strip Light, Efficient Wire to Board Terminal Splicer, Pack of 10 PCS(No Wire)

$12.95

LED Strip Connector 8mm 2 Pin for Waterproof Single Color Tape Light, Pack of 10(No Wire)

$12.95

Flexible RGB Light Strip Direct Connect Clamp - 10PCS

$3.92

LED Strip Gapless Connector 10mm 2 pin for Non-Waterproof IP20 Single Color, LED Tape Connector Board To Board, Strip to Strip Joint, Pack of 10 PCS

$12.95

Details
Reviews
Tags
FAQ

* 90~305VAC input, built-in active PFC function
* 96% high efficiency
* Protections: short circuit / over current / over voltage / over temperature
* Class 2 power supply (3330mA and 5000mA versions)
* Metal case, IP67 design for indoor or outdoor installations
* Built-in 3 in 1 dimming function
* Constant Current adjustable via PWM or 1-10VDC Signal
* Type HL LED drivers for use in Class I, Division 2 hazardous location luminaires (16000mA version)
* Meet 4kV surge immunity level (IEC61000-4-5)
* Suitable for LED street lighting, outdoor LED lighting and general outdoor applications with high IP requirement
* 7 years warranty
* Made by Mean Well

Specifications

Accessory Type	Driver	Connection Type	Pigtail
Dimming Control	0-10V Dimming, Pulse Width Modulation (PWM), Resistive Dimming	Dimmable	Yes
Driver Type	Constant Current	Input Frequency Range	47 ~ 63 Hz
Input Voltage	90 ~ 305 VAC	Input Voltage DC	127 ~ 431 VDC
IP Rating	Waterproof IP67	Operating Temperature	-40~+70 °C
Output Channels	Single	Output Voltage DC	12 VDC
Built-in PFC Function	Yes	Special Features	3-in-1 Dimming Function, Dimmable, Waterproof
Standards And Certifications	RoHS Compliant, UL Recognized	Type	Power Supplies
Volts	12 VDC
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.

Manuals & Resources

Download 3330mA Spec Sheet

Download 5000mA Spec Sheet

Download 10000mA Spec Sheet

Download 12500mA Spec Sheet

Download 13000mA Spec Sheet

Download 16000mA Spec Sheet

Download 40000mA Spec Sheet

Accepted Forms of Payment

Credit Card

We accept Visa, MasterCard, Discover and American Express. Credit card information is never stored anywhere on our premises or online server. Credit card information is transmitted securely using 256-bit encryption.

PayPal

Select "PayPal" on the order form. Your order will not be processed or shipped until payment is received and verified. You will not be able to modify your order once it has been submitted.

Shipping

If you placed an order and want to know its status, please check your email for tracking information. If you need assistance, send us an email (SuperColorLEDs@gmail.com), and make sure "Order Status" is selected in the inquiry drop-down.

We make every effort to ship all orders within 24 hours.

Same-day shipping if order is placed by 3 p.m. CDT.
Next-day shipping (excluding weekends) if order is placed after 3 p.m. CDT.
Monday shipping if order is placed on the weekend.
**An email is sent to confirm that your order has been received and is being processed. Another email will be sent to you with tracking information when your order ships.

Overnight & 2-Day Shipping/Saturday Delivery

Overnight and 2-day shipping options are only available to destinations within the USA. Shipments are sent via UPS and are delivered in 1-2 business days (not weekends).

Returns and Exchanges
We have a hassle-free 30-day return policy.

Warranty

All LED Products: 2-Year Replacement Limited Warranty
Super Color LEDs carries a minimum 2-year limited warranty on all LED products for manufacturing defects or product failures. Select products may carry more than a 2-year warranty, which will be documented on the product page. If you experience an issue with a product, a technician from our support team may be able to diagnose the issue. Technical support is available by phone, chat and email. The warranty is valid and only applies when Super Color LEDs products are properly used for their intended applications.

Lifetime Warranty
Select Products: Limited Lifetime Warranty
Super Color LEDs, Inc. warrants that products carrying a lifetime warranty will be free from defects in the material and workmanship for the lifetime of the product. If an LED or other internal component fails, return the product to Super Color LEDs, Inc. for inspection. If, after inspection, Super Color LEDs verifies that the defect was not caused by negligence, abuse, unauthorized repair or disassembly, we will replace the product with the same product. In the case the exact product is no longer available, a product of equal value may be substituted. Warranties are non-transferable. Warranty terms and policies are subject to change without notice.

Frequently Asked Questions

Q: What is the importance of UL Listed?

UL is an acronym for the Underwriters Laboratories. They are an independent product safety certification organization. A good summary used by UL is, "a not-for-profit organization dedicated to public safety." This means you can install these LEDs in commercial spaces, industrial applications, and in your home with peace of mind.

Q: What is the product warranty?

We’re so happy with the quality of our product, we offer a 5-year warranty on all of our LED strips to all of our clients. The warranty on power supplies ranges from 2 to 7 years which is model dependent.

Q: What is the lifespan of your strip lights?

Our lights have been rigorously tested and have an expected lifespan of 50,000 hours before dropping to 70% luminosity. This means that if you were to use your lights 12 hours a day, every day, the lights would be expected to last longer than 10 years. Even after that time has elapsed, the lights will maintain a brightness of 70%. Higher-output strips require a heat sink to reach the expected lifespan and beyond.

Q: What is color temperature?

The color of light can be quantified by referring to its color temperature. White light is measured in Kelvins (K). Most white lights fall in a spectrum between 1800K and 6200K. When getting close to 3000K, the light is noticeably warmer. On the other end of the spectrum, the lights have a blue-ish tint and cooler tone when nearing 6500K.

Q: Which color temperature should I choose?

Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have. What other color lights will be present? What material and color are the materials you wish to light? We can help you choose!

Q:What are lumens (lm)?

This is a quantifiable amount of light produced by an LED strip or other light-producing product. This is one way we can measure light output.
