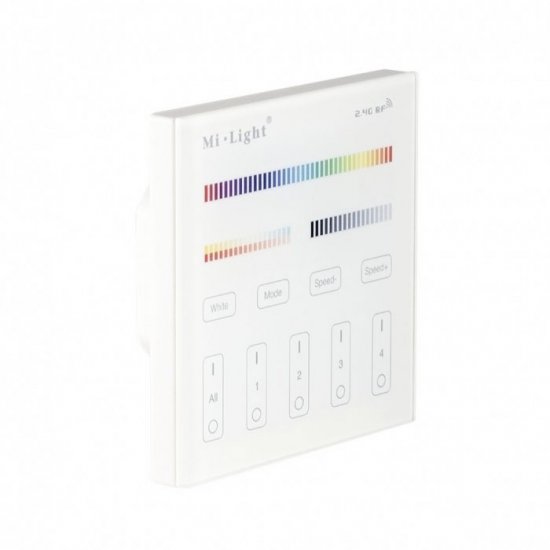

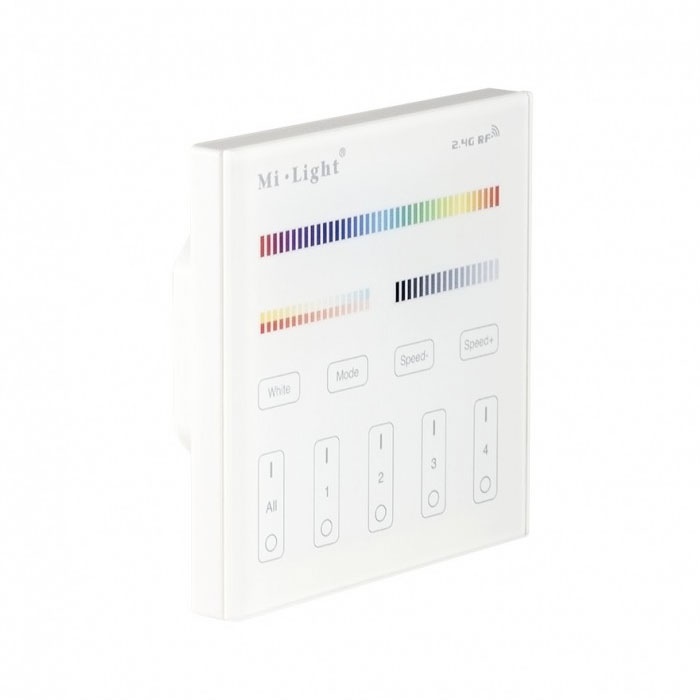

MiLight 4-Zone RGB+CCT Smart Touch Panel Remote Controller For LED Strip Lights - T4 Series

Price:   $29.95

  • Model: RGB-CCT-T4
  • Shipping Weight: 0.15kg
  • 865 Units in Stock

(0 reviews)

Please Choose:

  • AC90~110V
  • AC180V-240V
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Polymer Lithium Ion Battery - 40mAh
    $3.92
    Lithium Ion Battery - 400mAh
    $4.95
    Lithium Ion Battery - 2Ah
    $12.95
    Lithium Ion Battery - 850mAh
    $8.95
    • Details
    • Reviews
    • Tags
    • FAQ

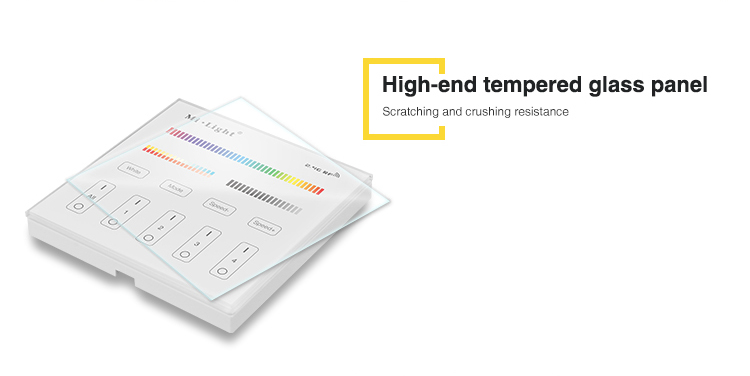

    RGB+CCT - Mi-Light is a wireless wall panel for managing brightness with the ability to control a given colour RGB and colour temperature CCT for devices designed for multicolour installations with variable colour temperature (eg RGB+CCT bulb/receiver or devices included in "Table No. 2"). The controller allows individual access for each zone that can be controlled by a glass wall panel. Powered by a AC90~110V or AC180~240V power supply.

    Mi-Light 4-zone RGB+CCT smart panel remote controller T4 specification



    Application For RGB+CCT  installations multicolour with variable colour temperature
    Maximum output current Dependent on the receiver used
    Input voltage 180-240V AC

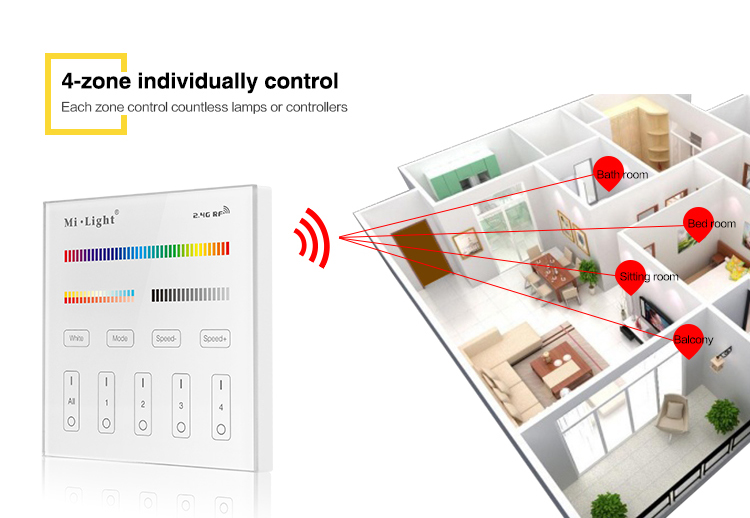

    The number of zones/channels supported 1 to 4
    Modulation method GFSK

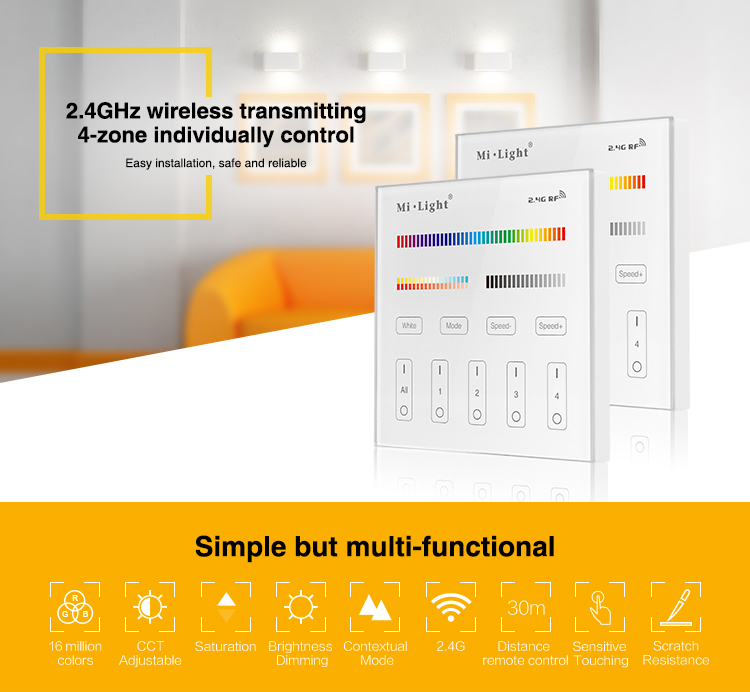

    Controlling method Radio

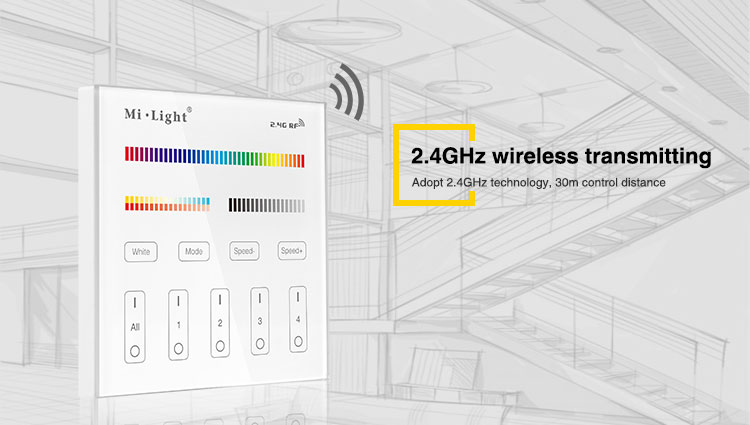

    Controlling range up to 30 meters in open area
    Control frequency 2,4GHz
    Power consumption in operating mode 5,5dBm
    Power consumption in standby mode 10uA
    Working temperature -20 – 60℃
    Type of installation Flush mounting inside fi60 box
    Colour White
    Ingress Protection IP20

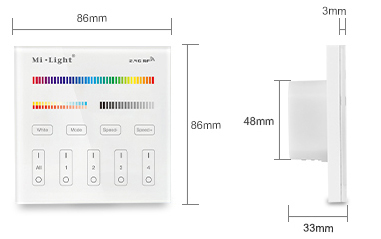

    Dimensions[mm] L86 x W86 x H33
    Certification RoHS, CE
    Warranty 2 years

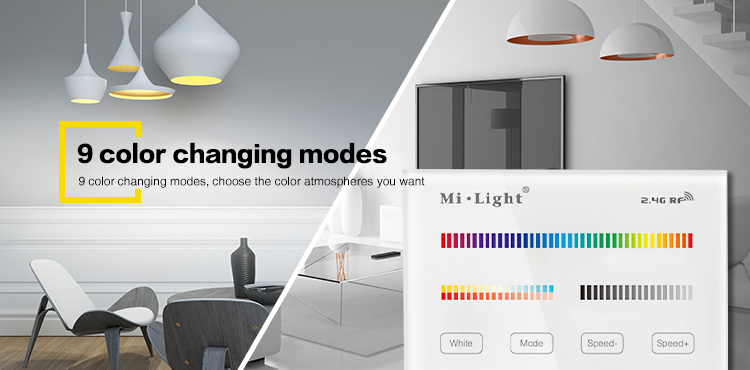

    Table 1. Dynamic programs for the Mi-Light 4-zone RGB+CCT smart panel remote controller T4



    Number Function Speed change Brightness change Saturation change
    1 Flashing orange colour Yes Yes No
    2 Smooth transition between all colours Yes Yes Yes (saturation)
    3 Smooth transition between warm and cold colours Yes Yes No
    4 Pulsating transition between three colours and warm white and cold white Yes Yes No
    5 Jump between six colours and white warm and cold Yes Yes No
    6 Jump between random colour sequences Yes Yes No
    7 Red flashing with three flashes Yes Yes No
    8 Blue blinking ended with three flashes Yes Yes No
    9 Green flashes with three flashes Yes Yes No

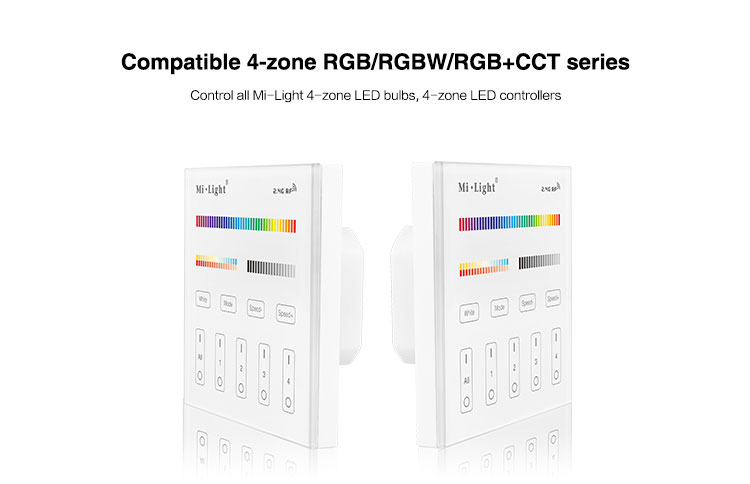

    Table 2. Compatible devices with Mi-Light 4-zone RGB+CCT smart panel remote controller T4



    Product code Product name
    FUT039  Mi-Light 2.4GHz RGB+CCT strip controller FUT039
    FUT015  Mi-Light 8W RGB+CCT LED light bulb FUT015
    FUT103  Mi-Light 4W GU10 RGB+CCT LED spotlight FUT103
    FUT104  Mi-Light 4W MR16 RGB+CCT LED spotlight FUT104
    FUT068  Mi-Light 6W RGB+CCT LED downlight FUT068
    FUT066  Mi-Light 12W RGB+CCT LED downlight FUT066
    IBOX1  Mi-Light WiFi iBox smart light iBox1
    IBOX2  Mi-Light WiFi controller iBox2
