RGB High Speed Power Amplifier

Price:   $16.95

  • Model: AMP-RGBx24A
  • Shipping Weight: 0.15kg
  • 99999 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    Standard Barrel Connector to Screw Terminal Adapter
    $1.39
    Flexible Light Strip Pigtail Connector Clamp - NFLSx10-4CTH
    $0.95
    3-Prong Power Cord for Power Supplies
    $4.95
    4 Contact 10mm Flexible Light Strip Interconnect - NFLSx10-4CIHx2
    $1.29
    • Details
    • Reviews
    • Tags
    • FAQ

    Want an RGB strip system making more than 10 feet long? Use this amplifier to amplify. RGB signal

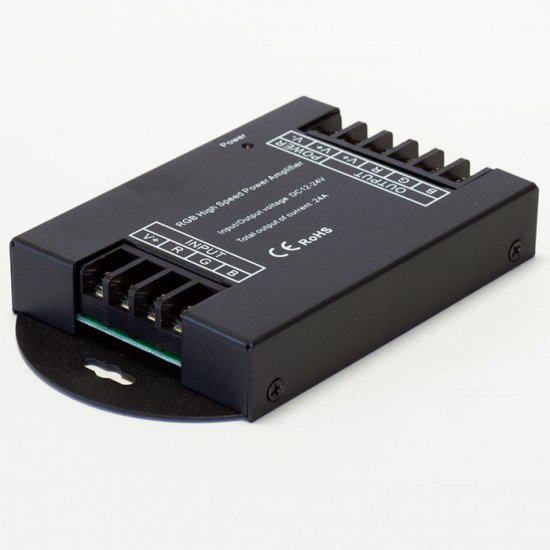

    This RGB amplifier with a sleek design has a capacity of up to 8 amps per channel (RGB). The total power is so on 24A.
    Easy to connect through the screws ETS.
    The high-speed module is responsible for virtually no delay in the signal over the entire length of the strip.




    Technical parameters
    Working temperature: -20-60 ℃
    Working voltage: DC12V-24V
    Signal voltage: DC12V-24V
    Input signal: PWM dimming signal
    Dimming range: 0.1%-100%
    External dimension: L145mm*W76.8mm*H20.5mm
    Connect terminal: screw connect mode, terminal caliber 7mm
    Connect mode: common anode
    Output current: <24A
    Output power: 12V:<288W, 24V:<576W
