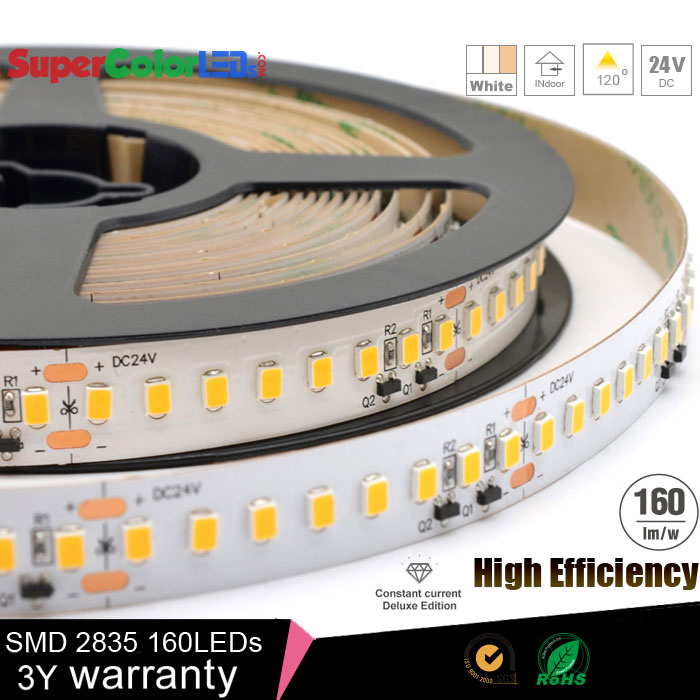

High Efficiency 160lm/w LED Strip Light - 24V High Density LED Tape Light w/ LC2 Connector - 3550 Lumens/Meter.

Price:   Starting at: $116.95

  • Model: NFLS-HE160LM
  • Shipping Weight: 0.25kg
  • 865 Units in Stock

(0 reviews)

Please Choose:

  • Cool White
  • Natural White
  • Warm White
  • Non-waterproof
  • Waterproof-Gel Coating (IP65) ( +$8.00 )
  • Waterproof-Silicon Tube (IP67) ( +$8.00 )
  • Waterproof-Glue Filling (IP68) ( +$12.00 )
(complete orders today,deliverd around 25/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    24 Key DC5V-24V IR Remote Controller WS2812B WS2811 2811 200 Change Max 1000 Pixels LED Controller
    $9.95
    20 Key Wireless IR Music LED Controller Remote Sound Sensor Controller
    $9.95
    MagicLight WiFi RGB LED Controller for Light Strips Android and IOS Free App WiFi Controller Compatible with Alexa & Google Assistant Comes With One 24 Keys Remote Control
    $19.95
    24 Keys Wireless IR Remote Controller with Receiver for RGB Light Strip - Dual Outputs
    $6.95
    • Details
    • Reviews
    • Tags
    • FAQ



    This High efficiency constant current circuit design to realize 160lm/w LED strip achieving high lumen efficiency requirements. is great for cabinet lighting, under-cabinet lighting, toe-kick lighting, cove lighting, task lighting, bookshelf lighting, showcase lighting, cupboard lighting, bias lighting, or for other indoor applications where space is limited. Using up to 800 LEDs, The 16.4' LED light strip is available with a white finish and can be easily cut into 8-LED segments and installed with its peel-and-stick adhesive backing. Attached LC2 locking connectors let you easily power and join multiple strips. Designed to last 30,000 hours, the single-color light strip operates within a 24V DC range and is available in cool white, natural white, warm white.







    Specifications



    Beam Angle 120 degree Connection Type LC2 Connector, LC2 Female, LC2 Male
    IP Rating Non-waterproof, Waterproof-Gel Coating(IP65), Waterproof-Silicon Tube(IP67),Waterproof-Glue Filling(IP68) LED Lifetime 30000 Hours
    LED Type 2835 SMD LEDs per Segment 8
    Operating Voltage Range 24 VDC Polarity Sensitive Yes
    LED Quantity 160LEDs/M Segment Length 1.97in
    Special Features High CRI, Plug and Play Standards And Certifications ISA Approved, RoHS Compliant
    Strip Width 12mm Suitable for Vehicles Yes
    Actual Power(w/m) 21W/Meter CRI(Ra) >80
    Type Flexible Light Strips Lumen/Meter 3381-3550lm/Meter
    Dimmable Yes Color temperature Cool:6300K, Natural:4000K, Warm:3000K
    Luminous Efficiency >160Lm/W
    All specifications are subject to change without notice.

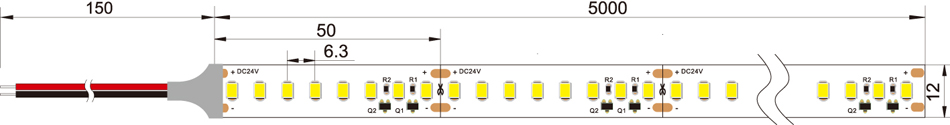

    High Efficiency 160lm/w 2835 constant current 160LEDs/m led strip lights



    Installation



    1. Easy installation with double adhesive tape.
    2. Don't press the LED lights heavily when fixing the strip.
    3. Fix the one end of strip first and press the edge smoothly to another end.
    4. The angel between the surface and the strip being pulled should not exceed 20 degrees.

    5. Minimum bending diameter is 6cm(2.36in).



    High efficiency



    High efficiency constant current circuit design to realize 160lm/w led strip achieving high lumen efficiency requirements.



    Waterproof series



    With the new silicone integrated extrusion molding technique, using first-class eco-friendly UV-resistant silicone material, it can be made into different waterproof ratings, IP68 / IP67 / IP65 to choose.
