Wall Mounted LED Knob Single Colour Dimmer Panel,12~24VDC

Price:   $36.95

  • Model: ST6A-D61
  • Shipping Weight: 0.15kg
  • 200 Units in Stock

(0 reviews)
(complete orders today,deliverd around 26/11/2024)
  • Shipping time
    About 2-3 days.
  • FREE NEXT DAY DELIVERY
    on orders over $200
  • Payment
    Paypal,Western Union
  • Email us
    info@supercolorleds.com
  • New Products
    24V DC Mean Well LED Switching Power Supply - CLG Series 60-150W Single Output LED Power Supply
    $59.95
    Mean Well LED Switching Power Supply - RS Series 150W Enclosed LED Power Supply - 24V DC
    $47.95
    12V DC Mean Well LED Switching Power Supply - CLG Series 60-150W Single Output LED Power Supply
    $59.95
    Mean Well LED Switching Power Supply - RS Series 150W Enclosed LED Power Supply - 12V DC
    $47.95
    • Details
    • Reviews
    • Tags
    • FAQ

    Specifications

    Input Voltage:    12-24VDC
    RF Remote Distance:  Max 30m
    Output: 6A x 1CH + 0~10V x 1CH
    Max. Output Power : 72W/144W(12V/24V)
    Dimming Range : 5%~100%
    Dimensions: L86 x W86 x H50mm

    Material: Plastic
    Weight (G.W.) : 220g
    Control Mode:    Single Color
    Standards And Certifications:    CE/FCC/RoHS Compliant
    For use with CT LED strip
    2 years replacement warranty

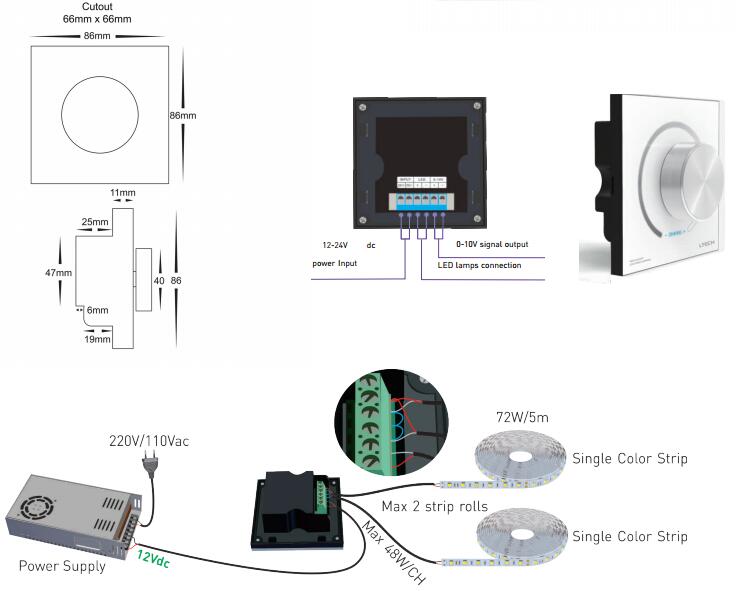

    Sample wiring diagram
