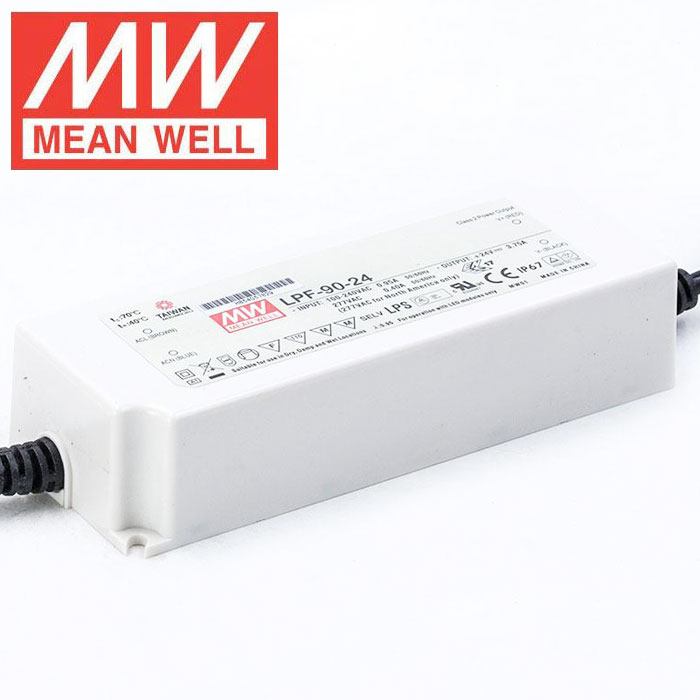

Mean Well LED Power Supply - LPF Series Constant Current LED Driver with Built-in PFC - 90W - 24V DC

Price: Starting at: $39.95

Model: LPF-90-24
Shipping Weight: 0.18kg
869 Units in Stock

(0 reviews)

Please Choose:

Select Power Cord:

Without Power Cord
With Power Cord ( +$4.00 )

(complete orders today,deliverd around 24/11/2024)

Shipping time

About 2-3 days.

FREE NEXT DAY DELIVERY

on orders over $200

Payment

Paypal,Western Union

Email us

info@supercolorleds.com

New Products

High CRI 2016 SMD Low-Power LED Strip Light - 24V Bright LED Tape Light w/ LC2 Connector

$79.95

Mini High Density 3535 Top 120LEDs/M RGB LED Strip Lights - High Brightness 24V LED Tape Light w/ LC4 Connector - 630 Lumens/M(39.37in).

$116.95 $99.95-15%

Built - in IC Addressable RGB LED Strip Lights - Dream Color Chasing DC5V LED SK6812 Digital 300 RGB LED Tape Lights

$86.95

High Efficiency 160lm/w SamSung LED Strip Light - 24V High Density Constant Current LED Tape Light w/ LC2 Connector - 3530 Lumens/Meter.

$96.95

Details
Reviews
Tags
FAQ

* 90 Watts at 24 VDC
* Universal AC input/full range (up to 305 VAC)
* Protections: Short circuit, over-load, over-voltage, over-temperature
* Built-in active PFC function
* High efficiency up to 90%
* Cooling by free air convection
* Optional dimming function (1-10 VDC, PWM signal or resistance)
* Suitable for LED lighting and moving sign applications
* Compliance to worldwide safety regulations for lighting
* Suitable for dry/damp locations
* Fully isolated plastic case
* Epoxy encapsulated with IP67 rating
* Class 2 power supply
* Class II power supply - no FG
* 5-Year warranty in North America
* Made by Mean Well

Specifications

Connection Type	Pigtail	Dimmable	No
Driver Type	Constant Current	Input Frequency Range	47 ~ 63 Hz
Input Voltage	90 ~ 305 VAC	Input Voltage DC	127 ~ 431 VDC
IP Rating	Waterproof IP67	Operating Temperature	-40~+70 °C
Output Channels	Single	Output Rated Current	1670mA
Output Voltage DC	24 VDC	Built-in PFC Function	Yes
Power Supply Type	2-Pin Class II, NEC Class 2, Waterproof	Special Features	Waterproof
Standards And Certifications	RoHS Compliant, UL Recognized	Type	Power Supplies
UL Compliance Number	UL 8750	Volts	24 VDC
Watts	90 Watts
Package Weight: 15.7oz (0.45kg)
Package Dimensions: 9.75" (25cm) x 2.62" (7cm) x 1.5" (4cm)
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable. All specifications are subject to change without notice.
